PVC Seal Strip Extrusion Production Line
The profiles produced by the PVC seal strip extrusion production line are usually used for window frames, door frames and decorative trims, etc. The PVC profile extrusion line includes several key components: control system, conical twin-screw extruder or parallel twin-screw extruder, calibration device, traction device, cutting machine, film covering machine and stacking machine.
- Screw Design: Twin-screw
- Screw L/D Ratio: 25:1
- Plastic Processed: PVC PE, PP
- Application: PVC Profiles
- Screw Material: 38CrMoALA
- Screw diameter (mm) :65/132
- Screw Speed (rpm): 120 rpm
- Power (kW): 37
PVC Seal Strip Extrusion Production Line
The profiles produced by the PVC seal strip extrusion production line are usually used for window frames, door frames and decorative trims, etc. The PVC profile extrusion line includes several key components: control system, conical twin-screw extruder or parallel twin-screw extruder, calibration device, traction device, cutting machine, film covering machine and stacking machine.
PVC Seal Strip Production Line Parameter
| Model | SJ51 | SJ 55 | SJ 65 |
| Diameter of screw | 51/105 | 55/110 | 65/132 |
| Speed (KG/H) | 120 | 180 | 250 |
| Weight (KG) | 3500 | 4000 | 5000 |
PVC Seal Strip Extruder Line Details:

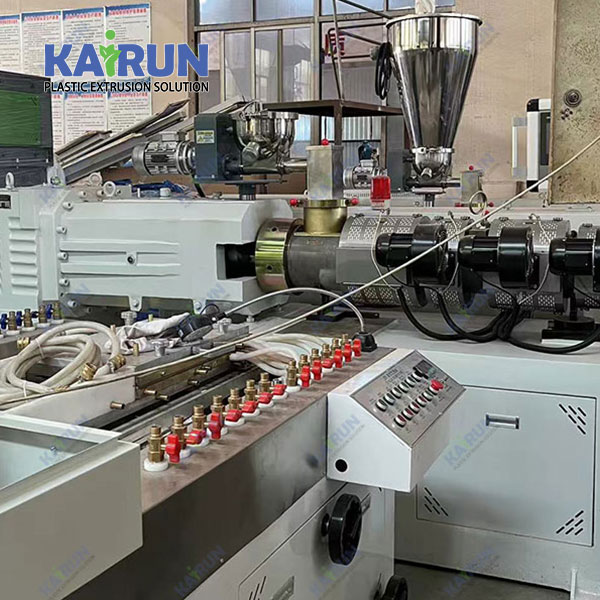

– Flange surface be nickel-coating treatment, ensure the stable extrusion.

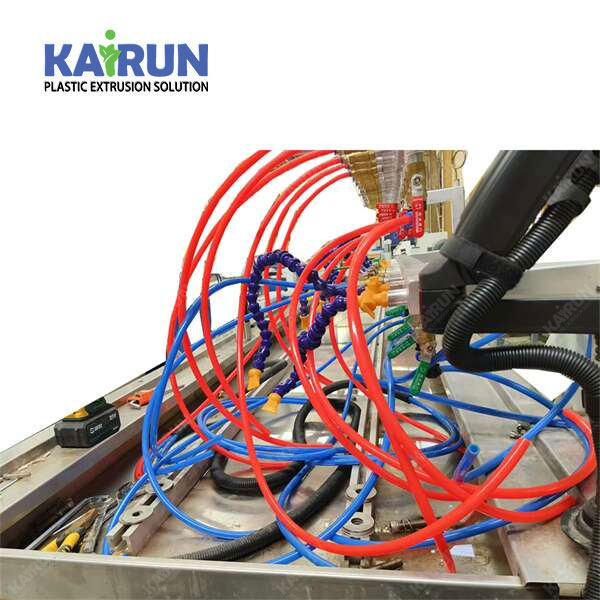

– The water collecting tank and storage tank are welded with a whole piece of stainless steel, which is not leaking for long-term use.
– Be equipped with vacuum pump, recycling water, save water cost.
– Pull the board to increase the output of PVC skirting boards.
– Use high-quality rubber blocks without hurting the PVC profiles.
7.1 Pipe surface protection.
7.2 Central Height Adjustment.

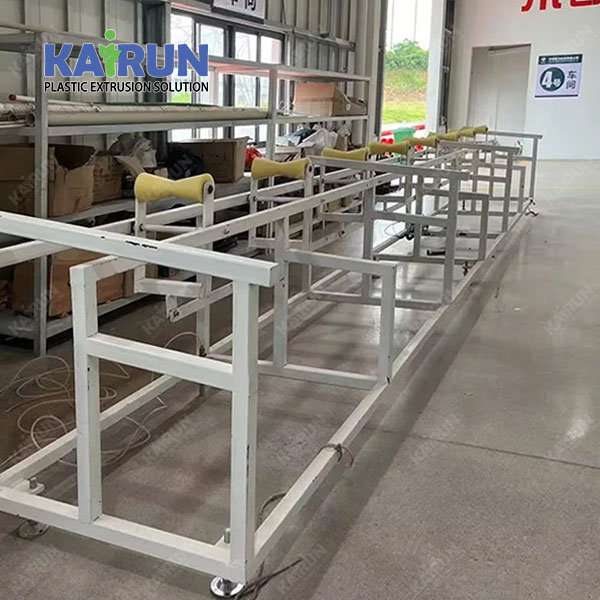

To support and unload pipes. The length of stacker can be customized.
