Standard Configuration: Screw loader system, dust collector system, the size and diameter of the vibrating sieve and grinding disc etc. refer to factory setting. Any specific requirements had better presented when negotiate with us. Accept customized: upgrade some parts to meet with your precise needs.

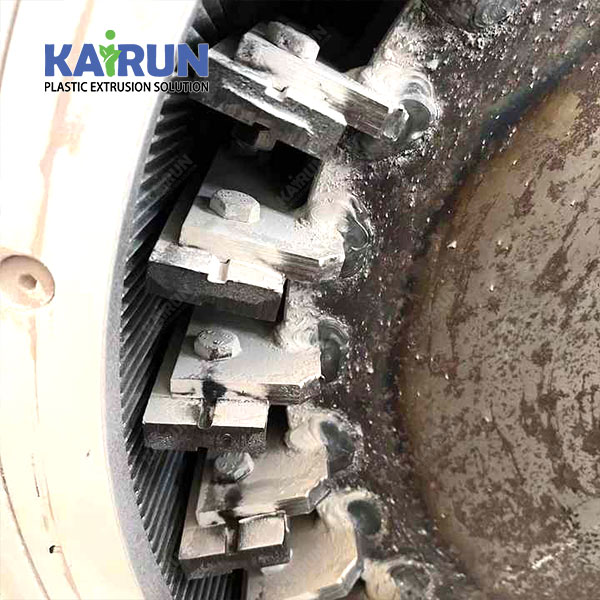

This PVC PP PE PET EVA plastic powder pulverizer machine used to produce HDPE, LDPE, LLDPE, ABS, EVA, PP, PS, PA, PB, PET, PPR powder. The raw material is fed from feeding pipe into the machine. It will be pulverized under the shearing force generated between high speed rotary rotor disc and static disc by increasing the continuous centrifugal force and velocity. It can produce 20-80mesh plastic granule.The gap distance between two disc can be adjusted. Plastic crusher is one of the important equipment in plastic extrusion production line.
Standard Configuration: Screw loader system, dust collector system, the size and diameter of the vibrating sieve and grinding disc etc. refer to factory setting. Any specific requirements had better presented when negotiate with us. Accept customized: upgrade some parts to meet with your precise needs.
|
Model
|
MF-400
|
MF-500
|
MF-600
|
MF-800
|
|
main motor power
|
37kw
|
45kw
|
55kw
|
90KW
|
|
capacity(pvc 30-80 mush)
|
50-120kg/h
|
60-220kg/h
|
280-380kg/h
|
500-800KG/H
|
|
material of conveying pipe
|
Stainless steel 304
|
Stainless steel 304
|
Stainless steel 304
|
Stainless steel 304
|
|
weight
|
1600kgs
|
1800kgs
|
2000kgs
|
2500kgs
|
