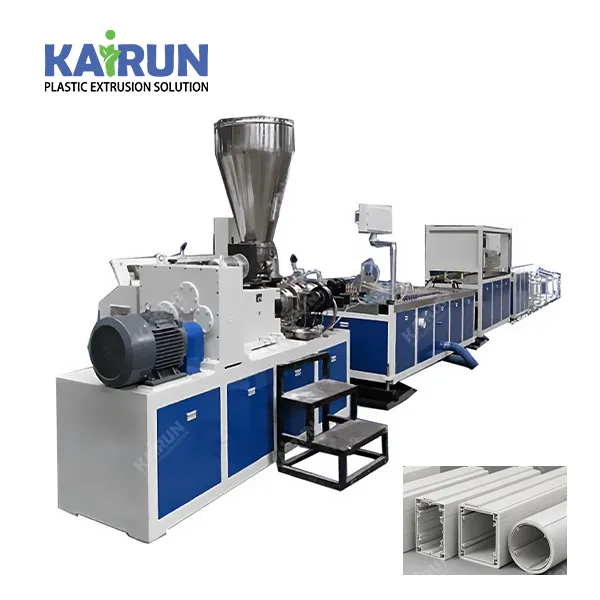

PVC Cable Trunking Profile Extrusion Machine Introduction

PVC cable trunking profile extrusion line is a highly automated, continuous production system that transforms PVC powder into a finished, precise, and safe product through the process of profile extrusion. Manufacturers of construction materials invest in these PVC cable trunking profile production lines to produce various profiles (standard, mini, skirting) by simply changing the die and calibrator.

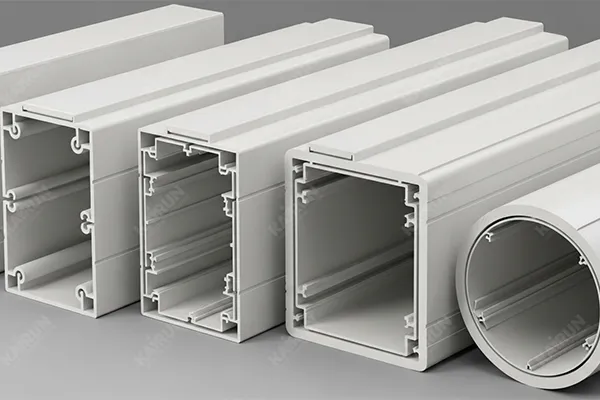

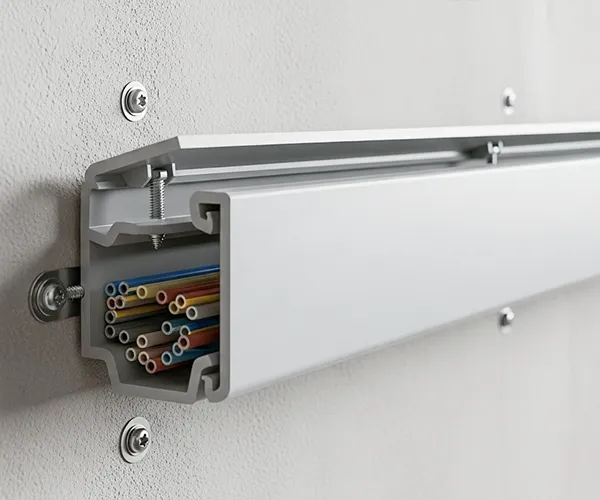

What is PVC Cable Trunking Profile?

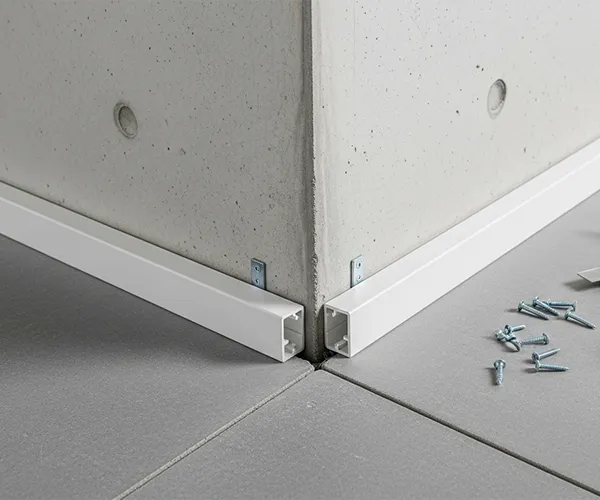

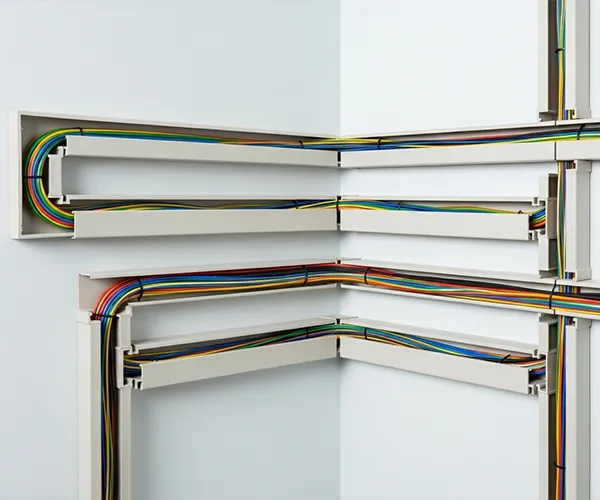

The cable trunking profile is the specific shape and design of a hollow PVC channel used to route, conceal, and protect electrical and data cables along walls, ceilings, or floors.

The Plastic Profile Production Line Includes:

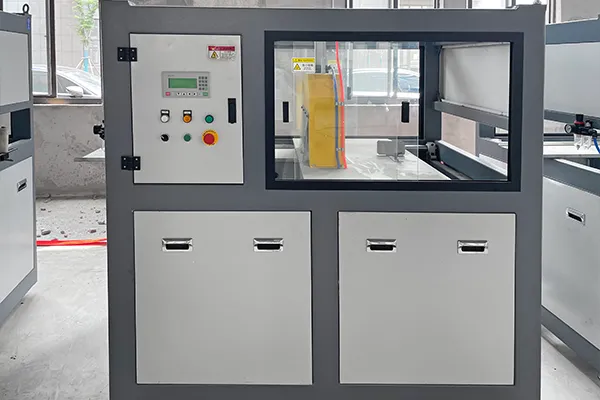

plastic powder screw loader → SJZ 55/110 conical twin screw extruder →Mold → Calibrator table→ Haul off machine → Cutting machine → 4 meters stacker.

Model	SJ51	SJ 55	SJ 65
Diameter of screw	51/105	55/110	65/132
Speed (KG/H)	120	180	250
Weight (KG)	3500	4000	5000

Components of PVC Cable Trunking Profile Extrusion Line:

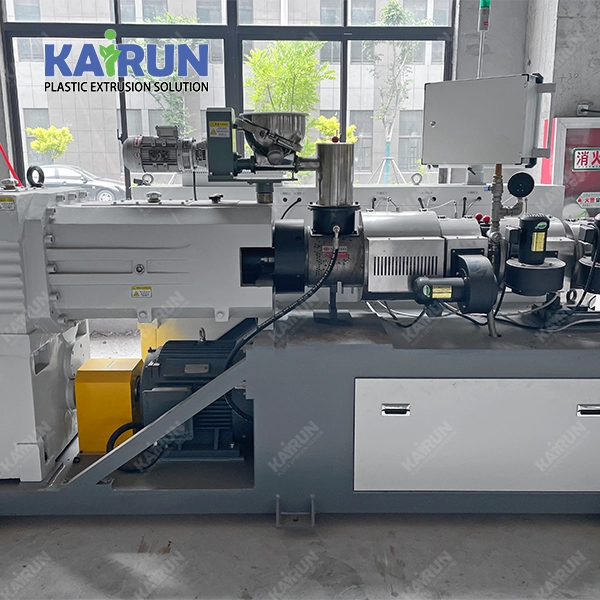

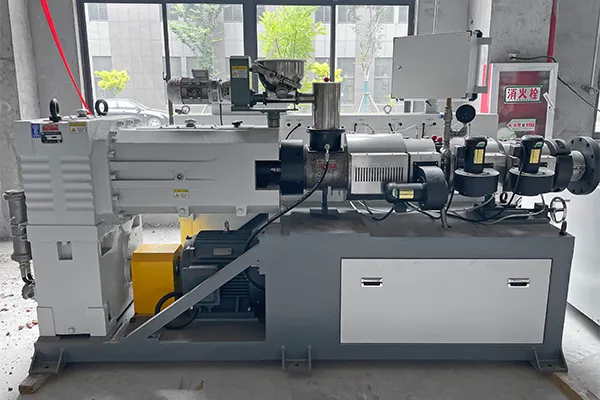

Extruder

The dry mix is further heated, compacted, and plasticized into a uniform melt, and is pushed through the die by the force of the screw to form the desired preliminary shape.

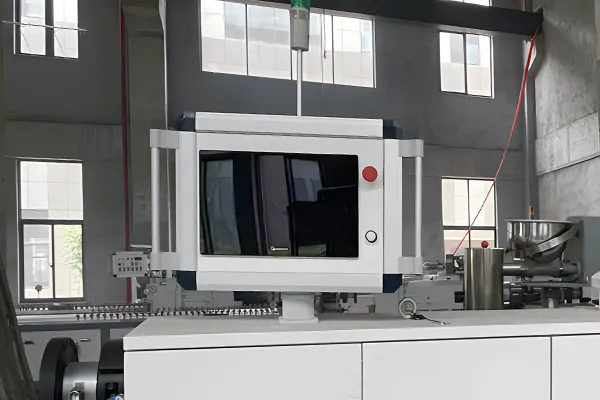

PLC Control System

Integrated PLC (Programmable Logic Controller) and touch screen human-machine interface for centralized control of all equipment operating parameters.

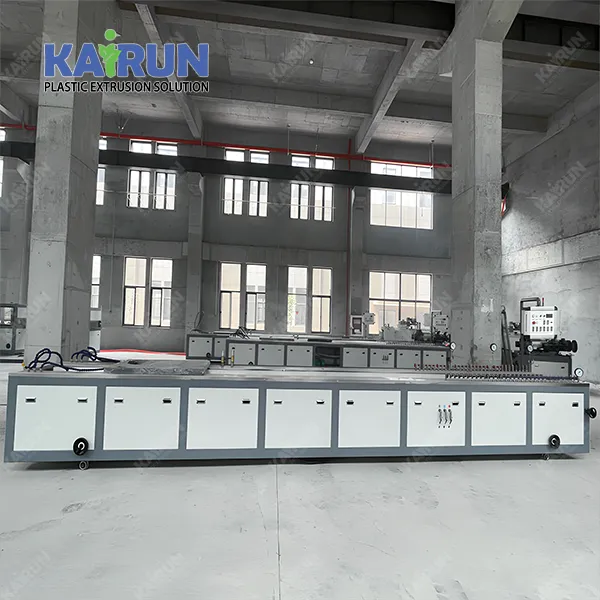

Vacuum Calibration Table

The hot, soft profile coming out of the mold is immediately cooled and solidified to ensure that the profile is completely cooled to room temperature and its final size and shape are controlled.

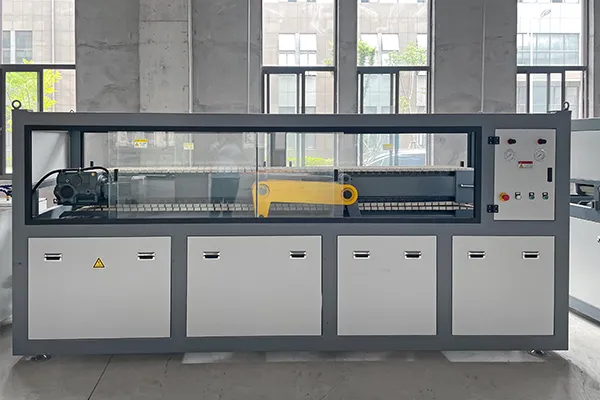

Haul-Off

Provides stable, continuous and adjustable traction force to evenly pull the profile forward, ensuring the continuity of production and the stability of profile size.
