PVC Marble Sheet Extrusion Line

PVC Marble Sheet Extrusion Line Description

PVC marble sheet extrusion line has the advantages of environmental protection, light weight, easy maintenance, no radiation, cheap price, popular decoration use in KTV, Hotel, Leisure facility, Home decoration, Hall, Meeting room, etc.

PET/PP Machine Advantage

1) Extremely strong resistance to chemical corrosion and erosion.
2) Good flexibility and strong impact resistance.
3) Cold resistance and aging resistance. The connection is simple, safe and reliable.
4) Light weight and convenient construction.
5) Strong wear resistance. The service life is more than 50 years, and it is maintenance-free during the service life.
6) Superior drainage performance. It is hygienic and can be recycled and used.

PVC Marble Sheet Production Line Parameter：

PVC Marble Sheet Making Line Details:

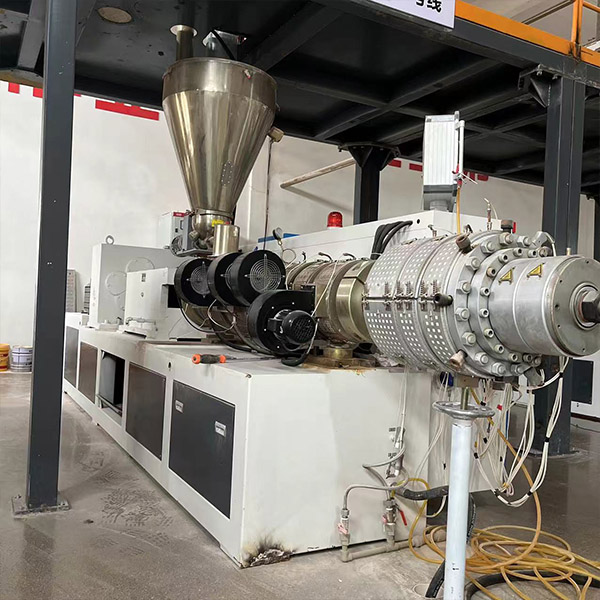

High Quality Single Screw Extruder
1.1 Siemens Touch Screen and PLC
1.2 Spiral Structure of Barrel
1.3 Special Design of Screw
1.4 Air Cooled Ceramic Heater
1.5 High Quality Gearbox
Adopt L/D ratio 38:1 screw for virgin material. Adopt L/D 33:1 screw for recycled material. We also have choice of twin screw and barrel for other material such PP powder, etc. Provide suitable extruder for different customer requirements.

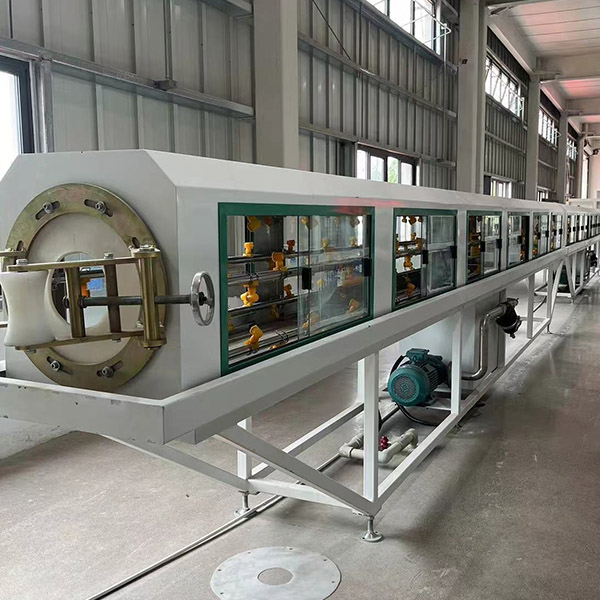

Vacuum Tank
3.1 Special Design of Calibrator
3.2 Automatic Vacuum Adjusting System
3.3 Silencer
3.4 Pressure Relief Valve
3.5 Automatic Water Control System
3.6 Water, Gas Separator
3.7 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, with pipe soak into water to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of
pipe.

Haul Off Unit
4.1 Separate Traction Motor
4.2 User Friendly Design
4.3 Pipe Adjustment Device
Haul off unit provides sufficient traction force to pull square pipe into the winding machine. Usually, haul off unit is for big square pipe, not necessary for small square pipe. According to different pipe sizes and thickness, our company will customize traction speed, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe
during traction.

Cutter
6.1 Precision Guide Rail
6.2 Industrial dust collector
Cutter controlled by Siemens PLC with fully automatic cutting process. Can customize cutting length.

Haul off unit
4.1 Separate Traction Motor
4.2 User Friendly Design
4.3 Pipe Adjustment Device
Haul off unit provides sufficient traction force to pull square pipe into the winding machine. Usually, haul off unit is for big square pipe, not necessary for small square pipe. According to different pipe sizes and thickness, our company will customize traction speed, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe
during traction.

Stacker
7.1 Roller motor
7.2 Central Height Adjustment
To support pipes. With rubber support roller, roller will rotate along with the
