PS Foaming Profile Production Line

PS Foaming Profile Production Line

PS foaming profile production line, consists of single screw extruder and the special co-extruder, with the cooling water tank, hot stamping machine system, haul-off unit and stacker. This foam profile production line according different profile, surface and mould to choose different standard twin paraller (conical) screw extruder. PS foam decoration profile extruder is mainly used for the profile photo frame, frame, door line, baseboard, wood manufacturing lines and other decorative lines of imitation. Having a convenient shape, high efficiency, and low cost. The plastic profile production line high degree of automation, easy operation, continuous production is stable and reliable, which won the majority of customers.

PS Foaming Profile Extrusion Line Parameter:

PS Foaming Profile Making Line Details:

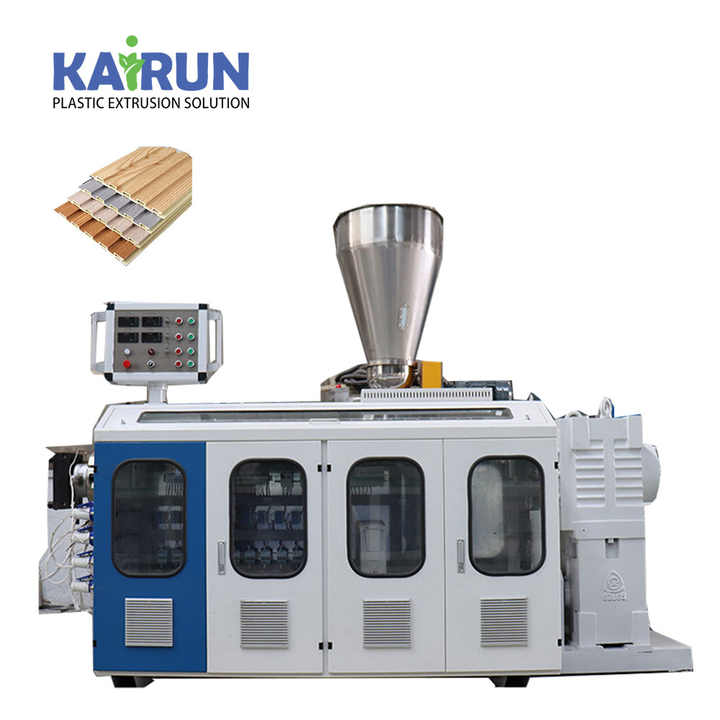

Twin Screw Extruder
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox
1.6 Advanced Vacuum System
1.7 Easy Cable ConnectionBoth conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.

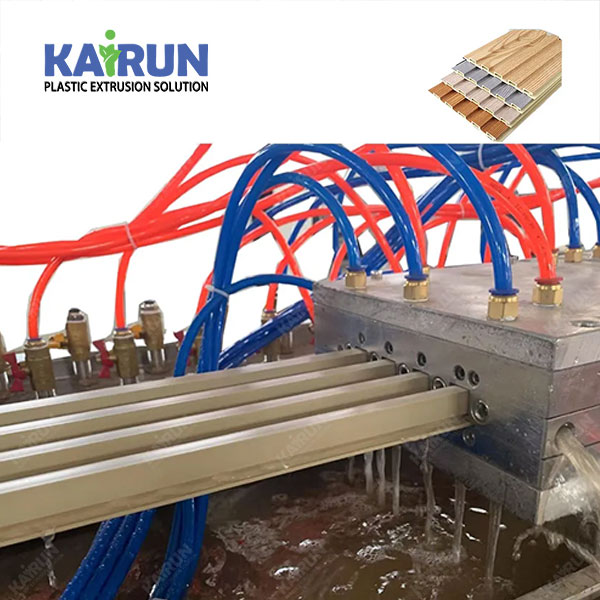

Model

(1) Material: 40GR or others
(2) Size: Customized

Calibration and Cooling Table
(1) Material: Stainless steel
(2) Method: Enforced spraying

Haul Off Machine

(1) Driving motor power: 11 kw or others
(2) Drawing speed: 0.2～5 m/min or others
(3) Haul-off method: 6 caterpillars or others

Cutting Machine
(1) Motor power: 3 kw and others
(2) Method: Saw cutting
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting of desired length.

Stacker

(1) Length: 4 m or others
(2) Width:1m or others
(3) Material: Stainless steel
