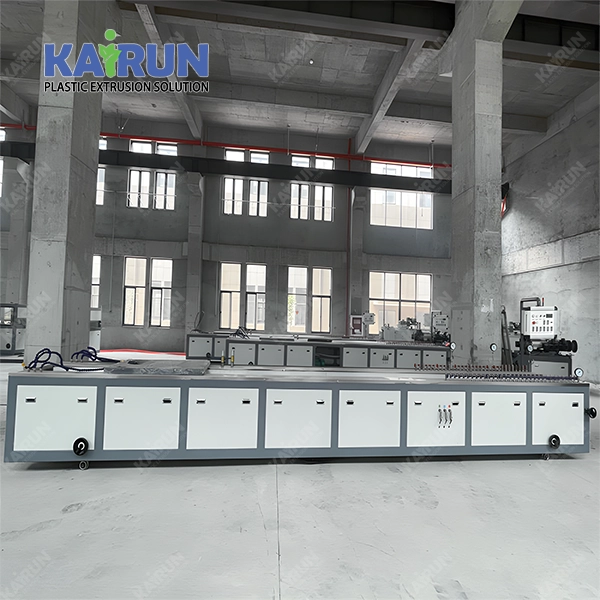

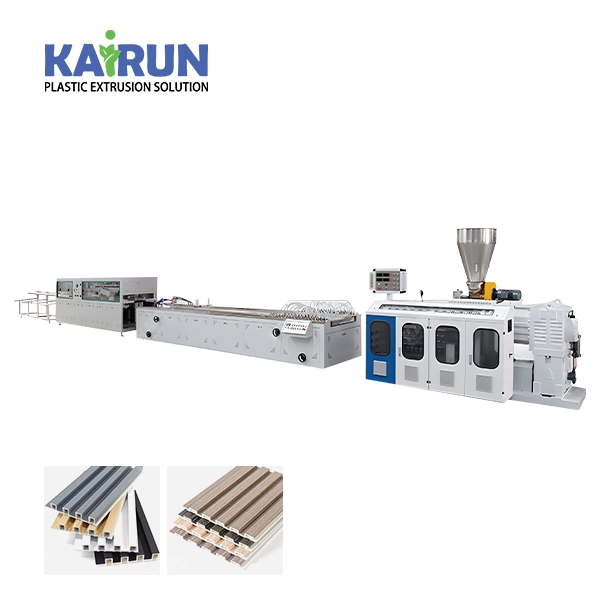

PVC Louver Wall Panel Extrusion Line

The PVC louver wall panel extrusion line includes screw feeder, plastic extruder, mould, vacuum forming table, haul off unit, cutting machine, stacker. Auxiliary equipments: mixer, crusher, pulverizer, lamination machine, hot stamping machine, printer and so on.

Contact now

Category: Plastic Profile Production Line

Previous: PS Foaming Profile Production Line

Next: How are MPP Pipes Produced?

PVC Louver Wall Panel Extrusion Line Introduction

What is PVC Louver Wall Panel?

PVC louver wall panel is a type of decorative and functional cladding material made from Polyvinyl Chloride (PVC). Its most distinctive feature is its design, which mimics the slatted, angled blades of traditional louvered shutters or screens. These louver wall panels are used to cover interior or exterior walls, creating a modern, streamlined look while offering practical benefits.

Key Considerations for PVC Louver Wall Panel Production

1. Output Capacity: PVC louver wall panel production line is rated by their output in kilograms per hour (kg/h). This depends on the extruder size (screw diameter) and the profile’s complexity.

2. Screw Design: The geometry of the screws is crucial for efficient melting and mixing, especially for complex, hollow profiles like louvers.

3. Die and Calibrator Design: This is the most custom part. The precision of these components directly determines the quality, dimensional accuracy, and surface finish of the final panel.

4. Automation & Control: A central PLC (Programmable Logic Controller) monitors and controls all parameters—temperatures, speeds, vacuum, and cutting lengths—ensuring consistent quality.

Components of PVC Louver Wall Panel Extrusion Line:

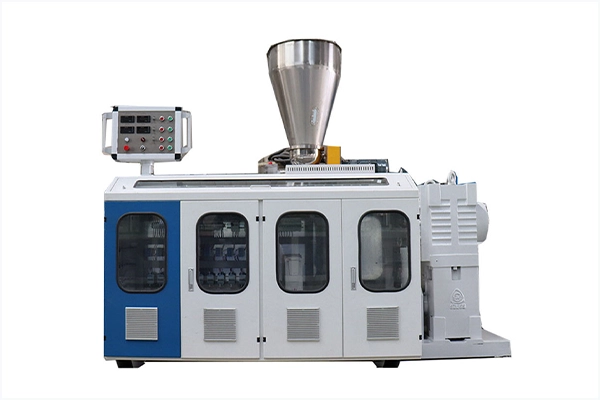

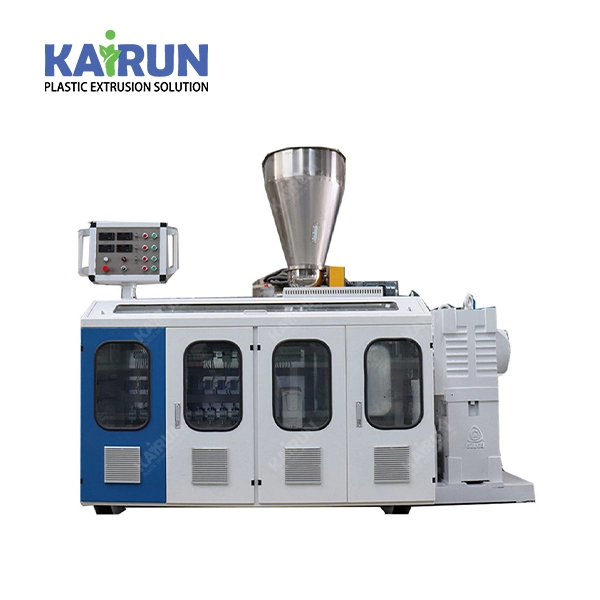

Extruder

The dry mix is further heated, compacted, and plasticized into a uniform melt, and is pushed through the die by the force of the screw to form the desired preliminary shape.

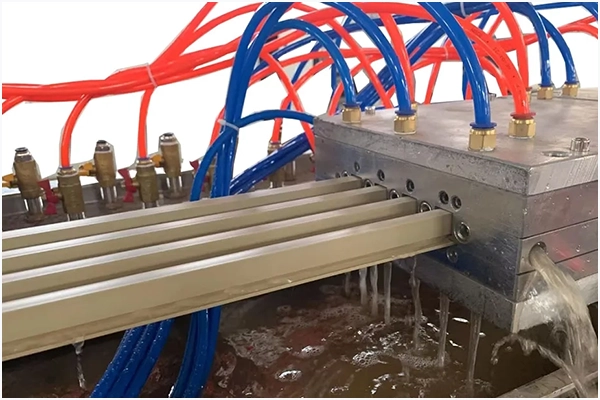

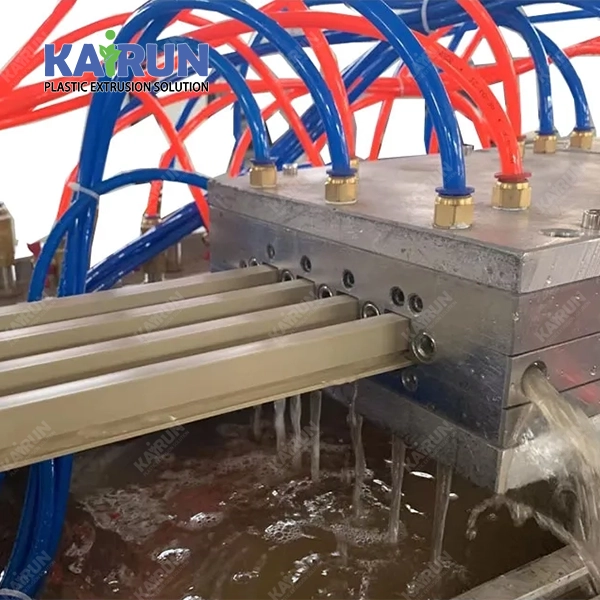

Extrusion Die

The molten PVC is forced through the die, which shapes it into the specific, complex cross-sectional profile of the louver wall panel (including the hollow chambers and the angled louver slats).

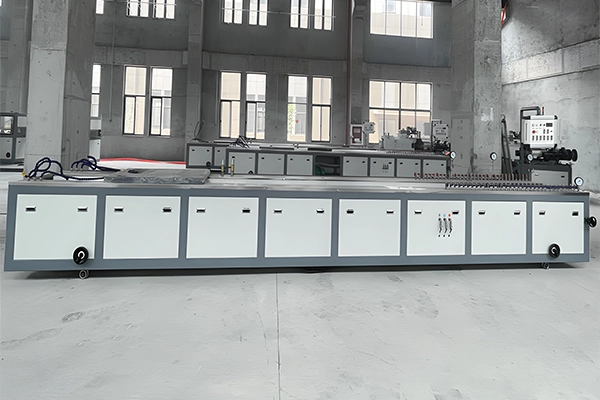

Vacuum Calibration Table

The hot, soft profile coming out of the mold is immediately cooled and solidified to ensure that the profile is completely cooled to room temperature and its final size and shape are controlled.

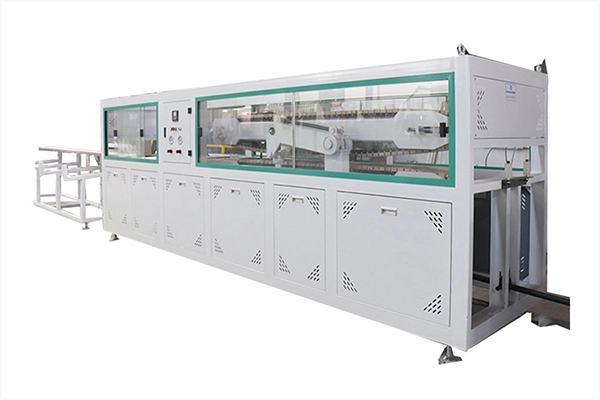

Haul-Off

Provides stable, continuous and adjustable traction force to evenly pull the profile forward, ensuring the continuity of production and the stability of profile size.

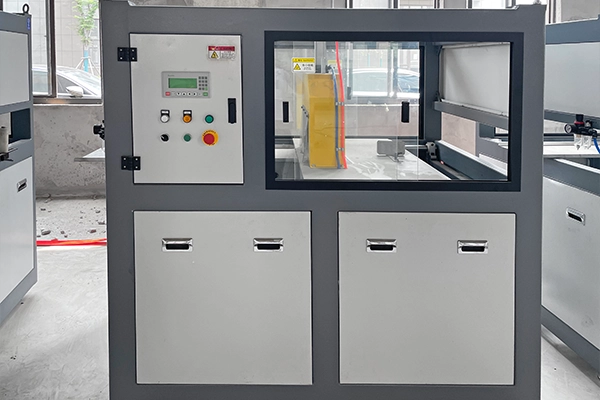

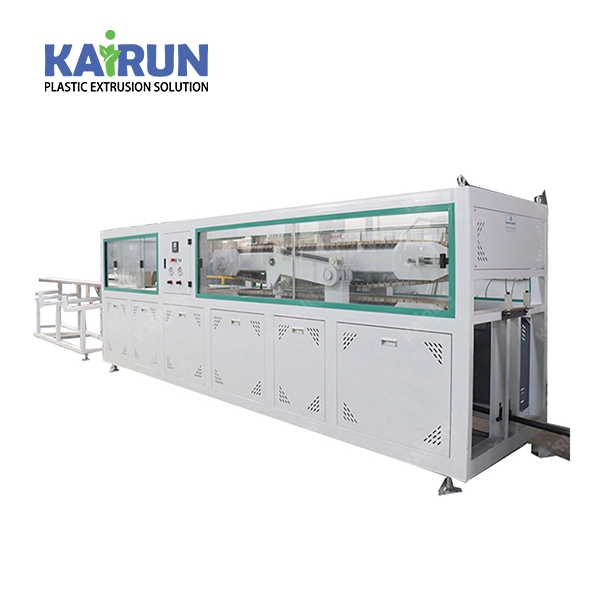

Cutter

Automatically cuts continuously produced profiles to set lengths and neatly stacks them. Usually a circular saw with synchronized movement.

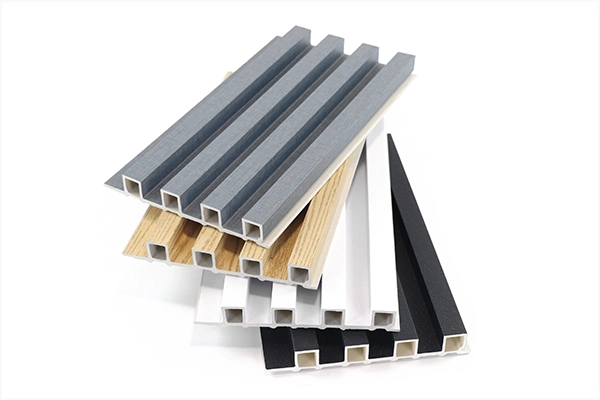

Extruded PVC Louver Wall Panels

PVC louver wall panel combines the aesthetic appeal of traditional louvers with the unbeatable durability and low maintenance of PVC plastic.

PVC Louver Wall Panel Production Line Parameter:

Extruder type	SJZ51/105	SJZ65/132	SJZ80/156
Production width(mm)	180	300/400/600	600
Motor power (kw)	22	37	55
Type	YF180	YF300/400	YF600
Output (kg/h)	80-100	150-200	300-400
Cooling water(m³/h)	6	7	8
Compressor air(m³/min)	0.6	0.6	0.6
