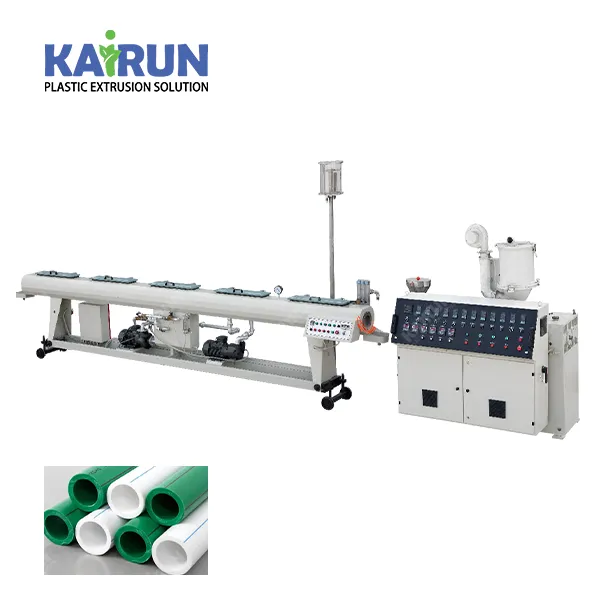

Plastic PP PPR Pipe Extrusion Line

Plastic PP PPR Pipe Extrusion Line Introduction

Plastic PP PPR pipe extrusion line is a fully integrated manufacturing system that transforms PP-R raw material into finished pipes and fittings. Its advantages stem from advanced technology, automation, and precision engineering.

PP PPR Pipe Extrusion Line Advantages:

1. Stable, High-Speed Extrusion: Modern extruders with advanced screw designs (e.g., barrier screws) ensure stable, high-volume melting and output of the PP-R material, maximizing production rates (kg/hour).

2. Continuous Production: The PP PPR pipe extrusion line is designed for 24/7 continuous operation, minimizing downtime and ensuring a consistent supply to meet market demand.

3. Precision Extruder: Equipped with advanced PLC (Programmable Logic Controller) and SCADA systems, it allows for precise control over temperatures, screw speed, and melt pressure. This is critical for PP-R, which is sensitive to processing conditions.

4. Reduced Labor Costs: From automatic hopper loading (vacuum conveying systems) to automatic cutting and bundling, these PP PPR pipe production line require minimal manual intervention.

5. While dedicated to PP-R, a well-designed line can be quickly reconfigured to produce pipes of different diameters (by changing the die and calibration sleeves) and different SDR (Standard Dimension Ratio) classes (by adjusting haul-off speed and internal pressure).

Components of PPR Pipe Production Line:

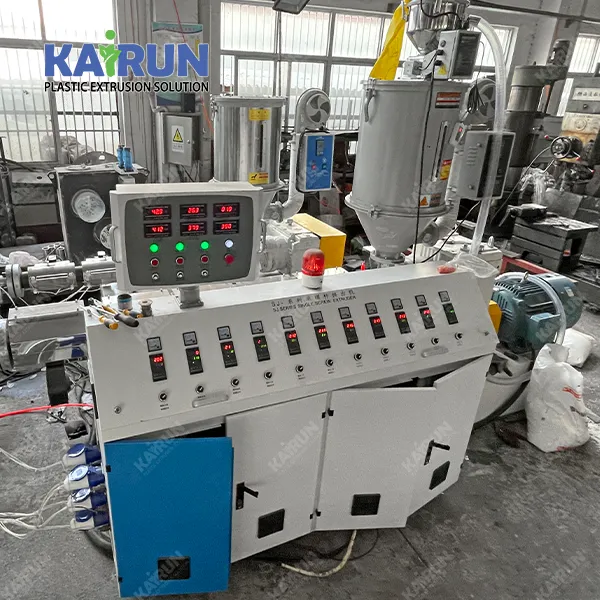

Extruder

The rotating screw conveys, compresses, melts, and homogenizes the material, then pushes it out through a die.

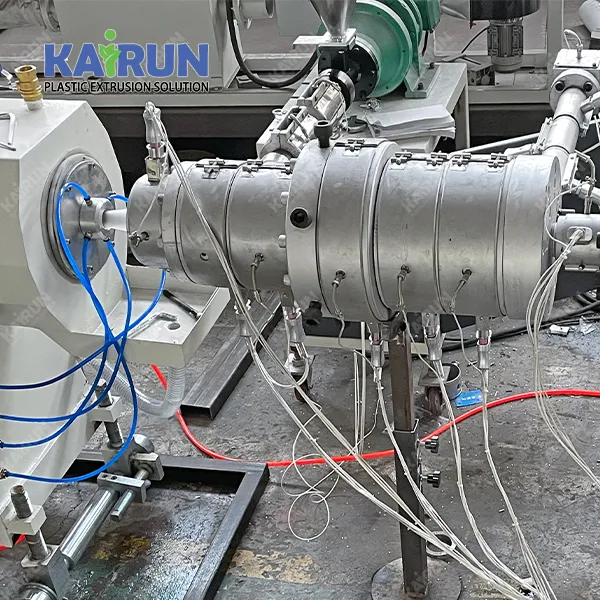

Extrusion Die Head

Typically a crosshead die where the molten plastic flows around a mandrel to form the tubular shape.

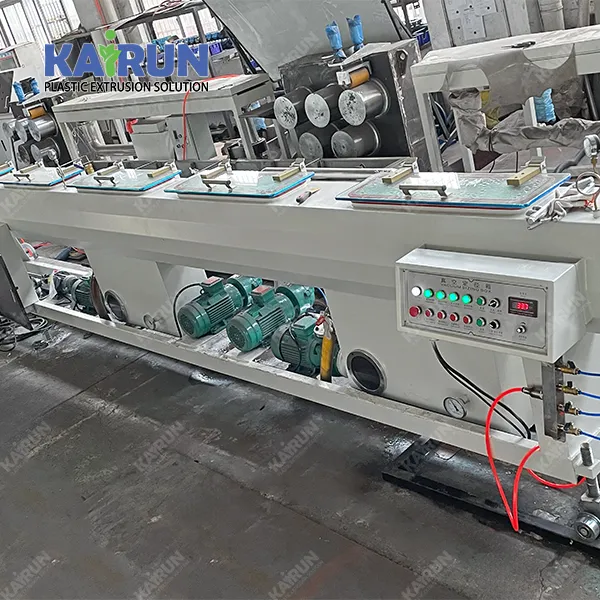

Vacuum Calibration Tank

Cools the outer surface of the pipe and uses a vacuum to precisely calibrate the pipe’s outer diameter (OD).

Haul-Off

Provides a constant, steady pulling force to draw the pipe through the sizing and cooling tanks.

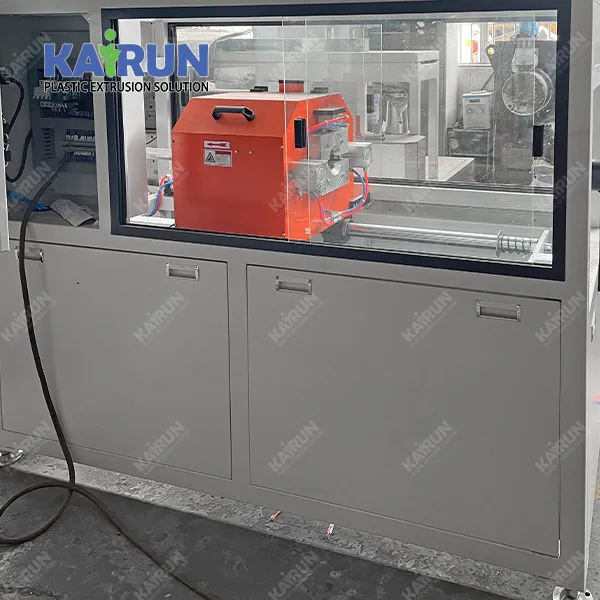

Cutter

Cuts the continuously extruded pipe to pre-set lengths (e.g., 4m or 6m).

Stacker

Automatically collects and stacks the finished pipes, ready for bundling and palletizing.

PP PPR Pipe Extrusion Line Parameters:

PPR Pipe Extrusion Line Video:

PP PPR Pipe Applications:

Potable Water Supply Pipelines

Hot and Cold Water Supply System

Central Air Conditioning and HVAC

Drainage Supply Pipelines

FAQ
