PE PP Wood Plastic Profile Extrusion Production Line

PE PP wood plastic profile extrusion production line consists of multiple systems such as batching and extrusion. It has the characteristics of high production efficiency, environmental protection and energy saving. The profiles produced have multiple advantages and are widely used in architectural decoration, outdoor landscaping, furniture manufacturing and other industries.

Contact now

Category: Plastic Profile Production Line

Previous: 16-50mm Four Cavities PVC Pipe Production Line

Next: TPE Sheet Extrusion Line for Automotive Floor Mats

PE PP Wood Plastic Profile Extrusion Production Line Introduction

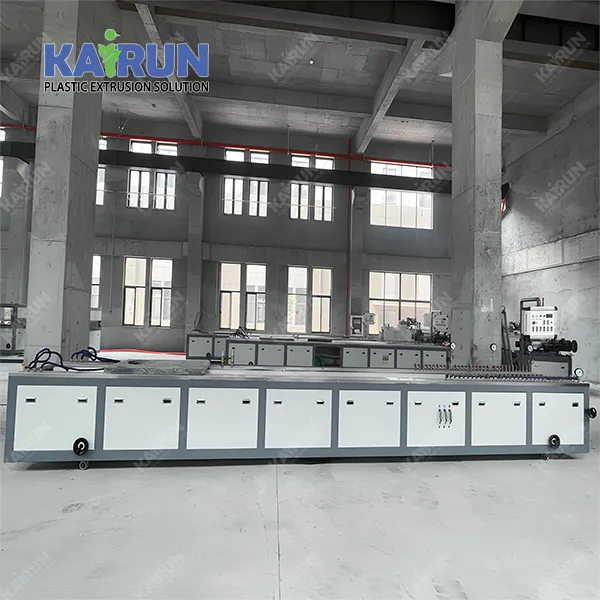

PE PP wood plastic profile extrusion production line is composed of extruder, mold, calibrator table, haul-off unit, cutting machine, etc.

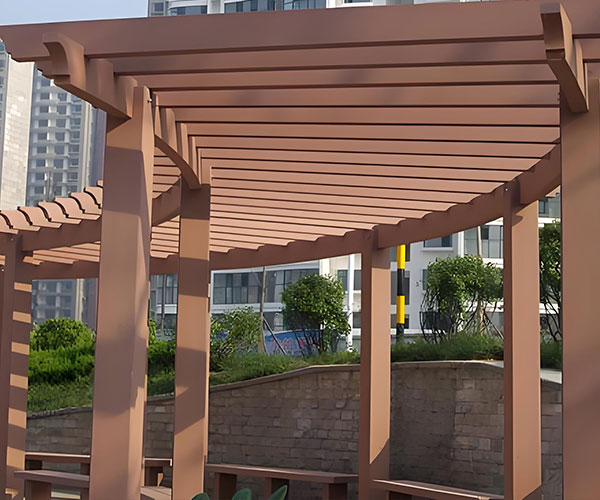

The wood plastic profile extrusion line is a device used to produce wood-plastic composite material profiles. It is widely used in the field of architectural decoration, such as door and window profiles, floors, wall panels, etc. The PE PP wood plastic profile machine is also used for outdoor landscape facilities, such as plank roads, railings, flower boxes, etc. PE PP wood plastic profile making machine can also be used in industries such as furniture manufacturing. It is a new material production equipment with great development potential.

PE PP Wood Plastic Profile Extrusion Line Features:

High production efficiency and continuous production. It can effectively utilize waste plastics and wood fibers, environmentally friendly and energy-saving. The produced profiles have the advantages of both wood and plastic, such as waterproof, moisture-proof, insect-proof, easy to process, etc., and have stable quality and high dimensional accuracy.

Components of PE PP Profile Extrusion Line:

Extruder

The dry mix is further heated, compacted, and plasticized into a uniform melt, and is pushed through the die by the force of the screw to form the desired preliminary shape.

PLC Control System

Integrated PLC (Programmable Logic Controller) and touch screen human-machine interface for centralized control of all equipment operating parameters.

Vacuum Calibration Table

The hot, soft profile coming out of the mold is immediately cooled and solidified to ensure that the profile is completely cooled to room temperature and its final size and shape are controlled.

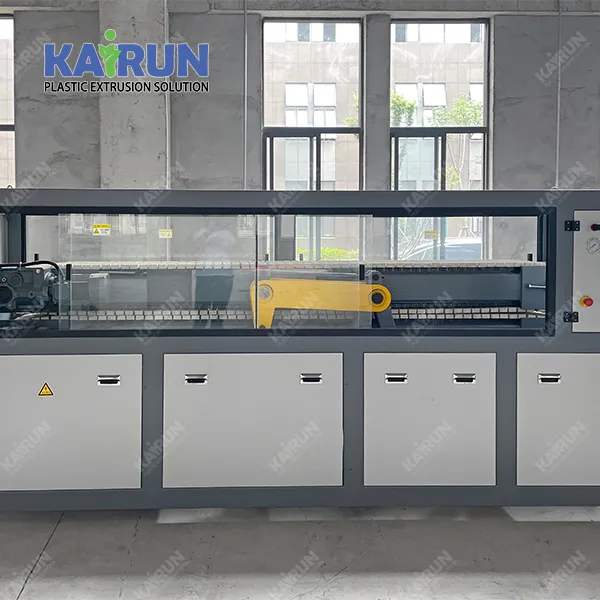

Haul-Off

Provides stable, continuous and adjustable traction force to evenly pull the profile forward, ensuring the continuity of production and the stability of profile size.

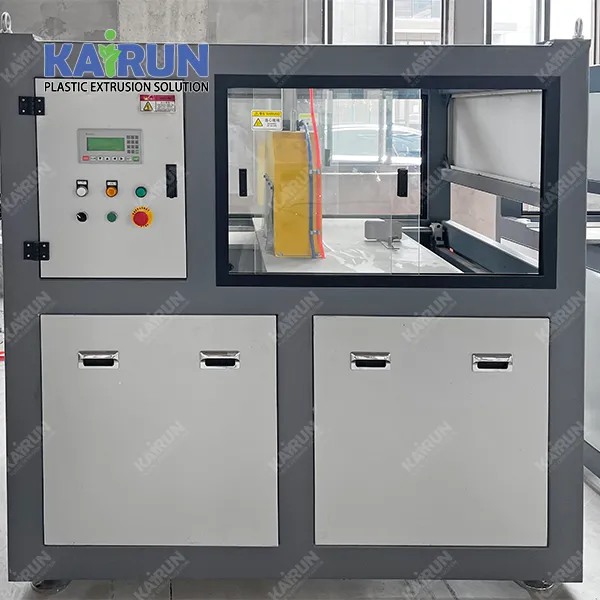

Cutter

Automatically cuts continuously produced profiles to set lengths and neatly stacks them. Usually a circular saw with synchronized movement.

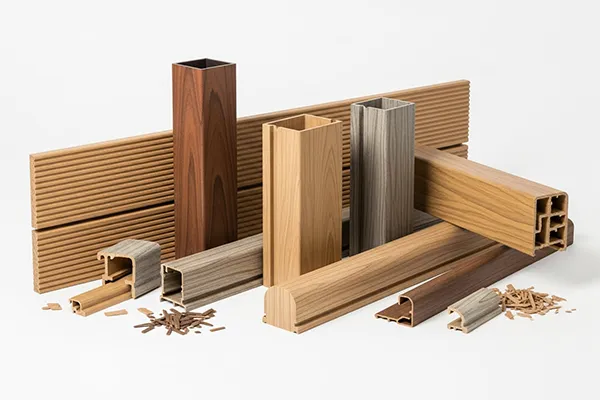

Extruded PE PP Profiles

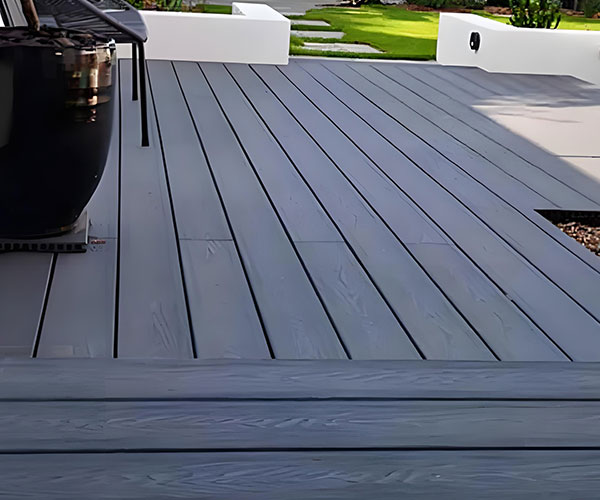

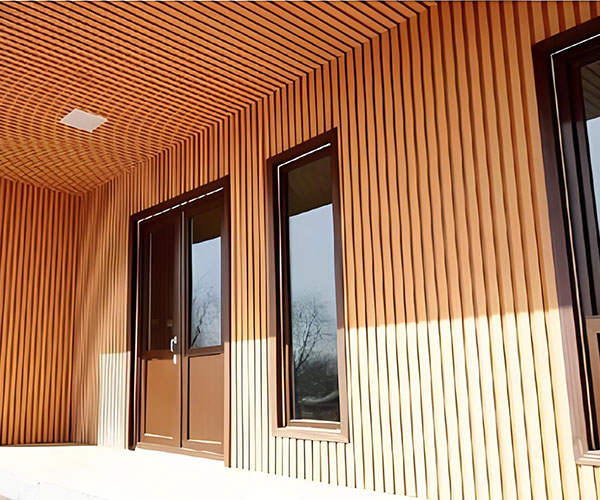

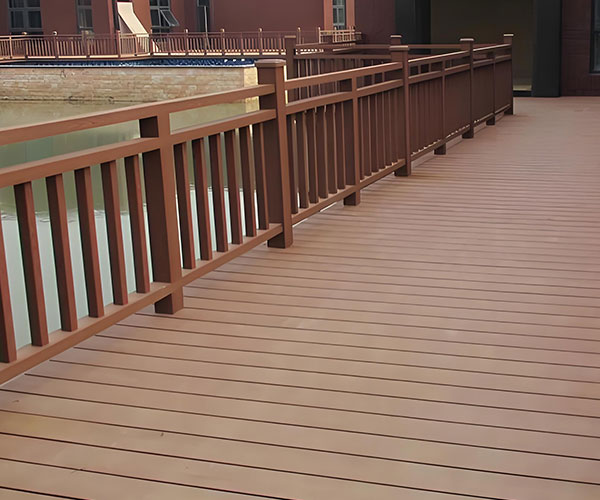

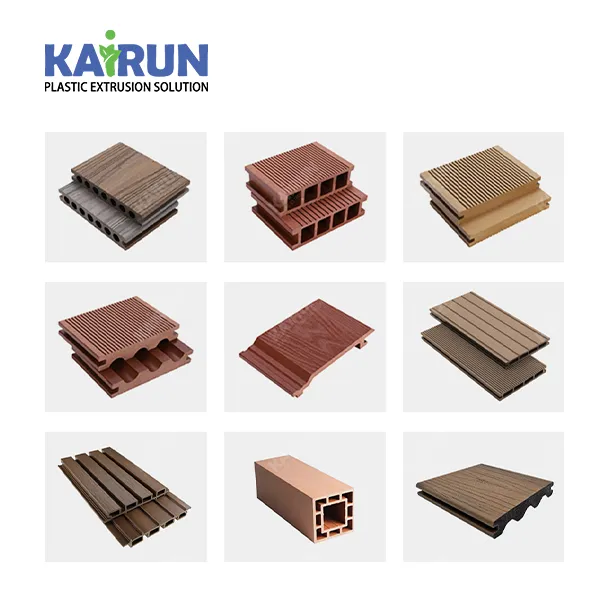

The most common wood plastic profiles include: decking boards, railing systems, fencing panels and posts, siding and cladding, outdoor furniture, trim and molding etc.

PE PP Wood Plastic Profile Extruder Parameter:

Extruder model	Extrude output	Main motor power	Screw speed	Cooling outside the barrel	Screw material	Barrel material
SJZS 51/105	100-150kg/hour	18.5kw; AC motor	38.4 rpm	400w × 3 wind cooling fan	38CrMoALA and through high temperature nitriding treatment. Nitriding depth: 0.5-0.6 Hardness (HV): 740-940 Surface roughness ≤ 0.8um	38CrMoALA and through high temperature nitriding treatment. Nitriding depth: 0.4-0.7 Hardness (HV): 740-940 Surface roughness ≤ 0.8um
SJZS 55/110	180-280kg/h	22 kW; AC motor	38.4 rpm	400w × 3 wind cooling fan
SJZS 65/132	300-350 kg/h	37 kW; AC motor	38.4 rpm	550w × 3-wind cooling fan
SJZS 80/156	400-450kg/h	75 kW; AC motor	40 rpm	550w × 5 wind cooling fan
