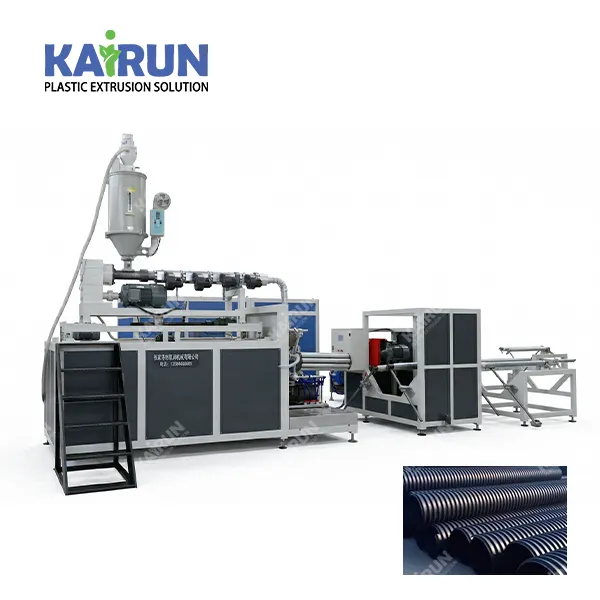

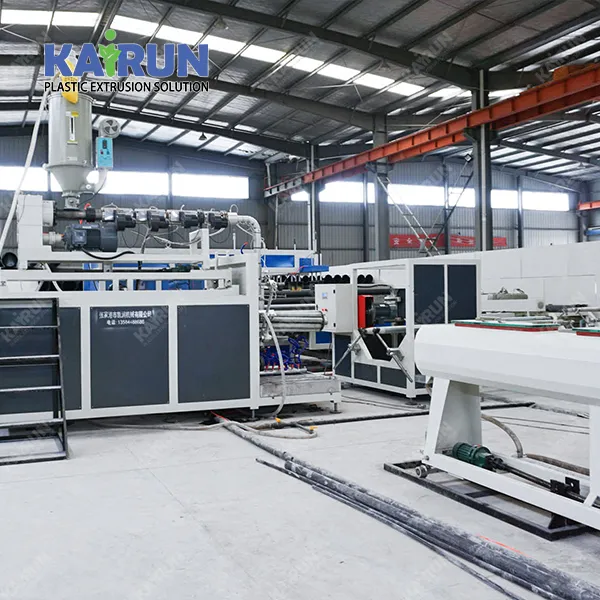

PE Hollow Wall Winding Pipe Extrusion Line

PE Hollow Wall Winding Pipe Extrusion Line Introduction

The PE hollow wall winding pipe extrusion line produced by Kairun can produce winding pipes with sizes ranging from Ø200-3000mm. The hollow wall winding pipe production line uses an ingenious “hot winding” process to efficiently produce new plastic pipes with excellent mechanical properties and economic benefits, providing important infrastructure materials for modern urban construction and environmental protection.

What is Hollow Wall Winding Pipe?

Hollow-wall spiral wound pipe is a hollow pipe made primarily of high-density polyethylene (HDPE, PE) using a hot-wrap process.

Hollow Wall Winding Pipe Advantage:

1. Extremely strong resistance to chemical corrosion and erosion.

2. Good flexibility and strong impact resistance.

3. Cold resistance and aging resistance. The connection is simple, safe and reliable.

4. Light weight and convenient construction.

5. Strong wear resistance. The service life is more than 50 years, and it is maintenance-free during the service life.

6. Superior drainage performance. It is hygienic and can be recycled and used.

Hollow Wall Winding Pipe Extrusion Line Parameter:

Components of Hollow Wall Winding Pipe Production Line:

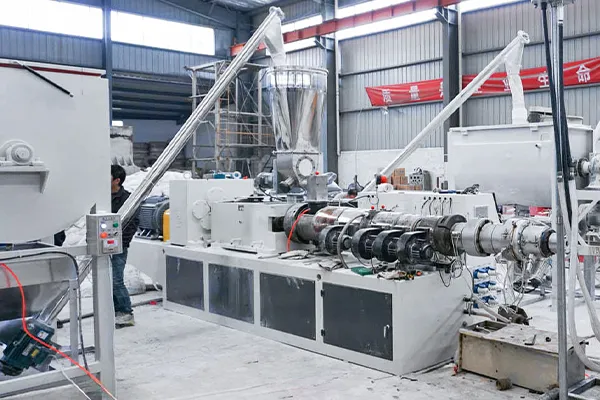

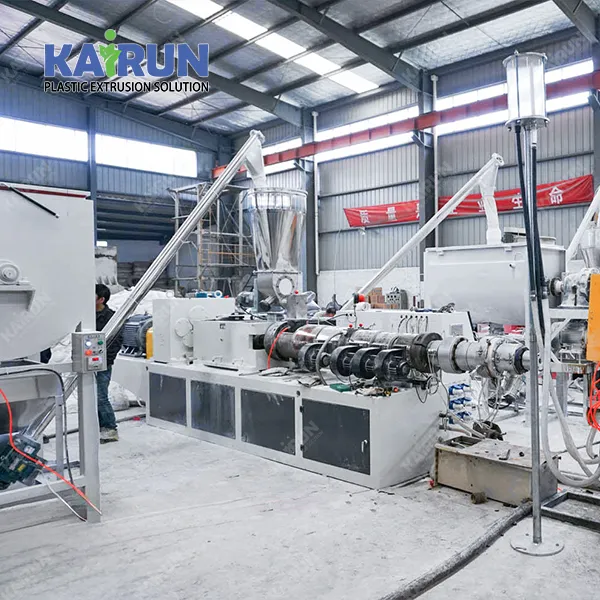

Extruder

The raw materials (usually granular) are heated, plasticized, melted, and stably extruded into profiles of specific shapes.

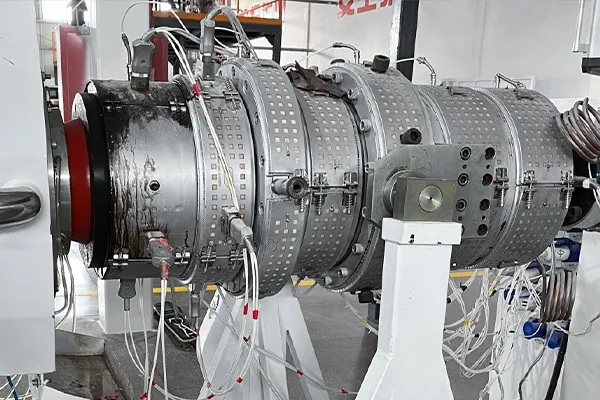

Extrusion Die Head

Receive the molten material sent by the extruder, form it into a tubular parison, and determine the preliminary inner and outer diameter dimensions of the pipe.

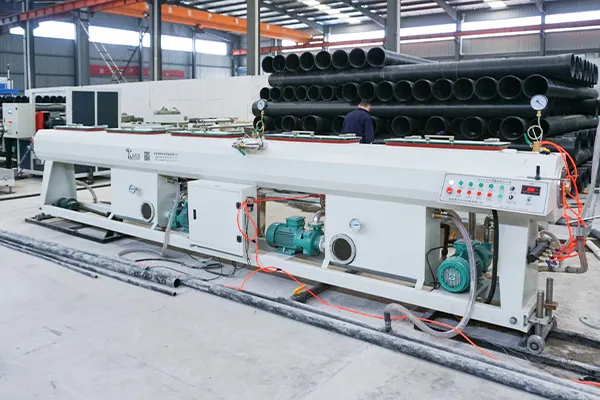

Vacuum Calibration Tank

The hot and soft tube billet coming out of the mold is quickly cooled and shaped to obtain precise size and stable roundness.

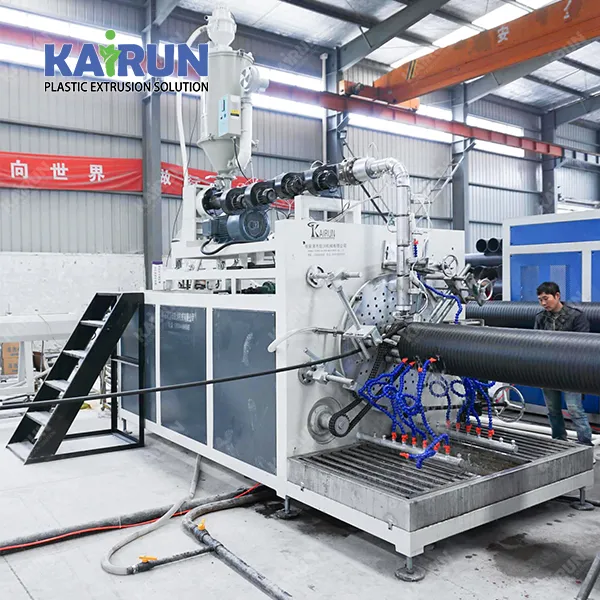

Winding Machine

The extruded material is wound onto the die at a spiral angle using a winding device and connected by heat melting or welding to form a hollow wall structure.

Cutter

The cutting machine automatically cuts the continuously moving pipe to a fixed length according to the set length.

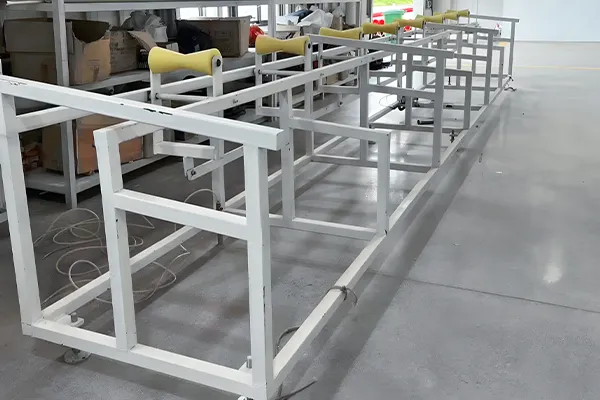

Stacker

Automatically receive and stack cut pipes, reducing manual labor and avoiding scratches on the pipe surface.

Hollow Wall Winding Pipe Extrusion Line Video:

Hollow Wall Winding Pipe Applications:

Sewage Pipeline

Culverts and Road Underpasses

Industrial Drainage Pipeline

Cable Protection Conduits
