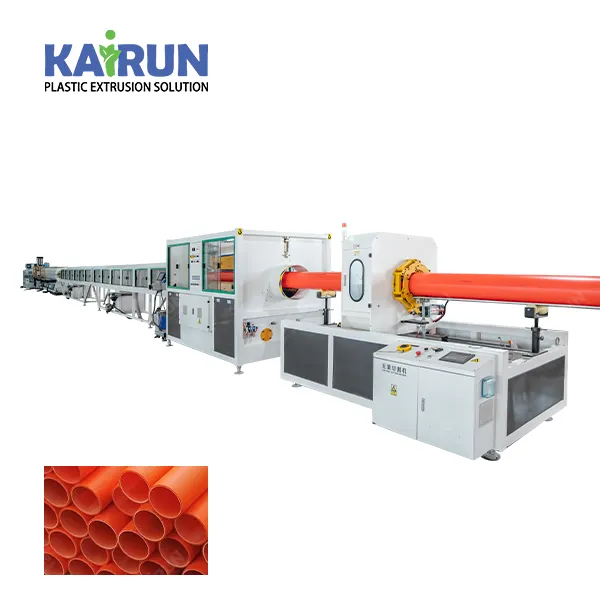

MPP Electrical Wire Protection Pipe Extrusion Line

MPP Electrical Wire Protection Pipe Extrusion Line Introduction:

MPP electrical wire protection pipe extrusion line is a special equipment for producing MPP wire protection pipes. Consists of extruder, extrusion die head, vacuum tank, cooling tank, haul off unit, cutting machine, stacker, etc.

The MPP wire protection pipe extrusion production line has the advantages of high production efficiency, excellent product performance, stable equipment operation and wide application. It can efficiently produce wire protection pipes with reliable quality and adaptable to various engineering environments.

Modified Polypropylene (MPP) Electrical Pipe Advantages:

1. Outstanding High-Temperature Resistance: Comparable to CPVC, long-term use temperature can exceed 90°C.

2. High Compression and Impact Resistance: High ring stiffness, especially suitable for deep burial and heavy-load areas.

3. Convenient Construction (Core Advantage): Uses fusion welding for connections, resulting in high joint strength, good sealing, and strong integrity. Ideal for trenchless construction techniques (like pipe jacking/pulling), minimizing surface disruption.

4. Lightweight, Low Friction Coefficient: Facilitates cable pulling and improves construction efficiency.

Components of MPP Pipe Production Line:

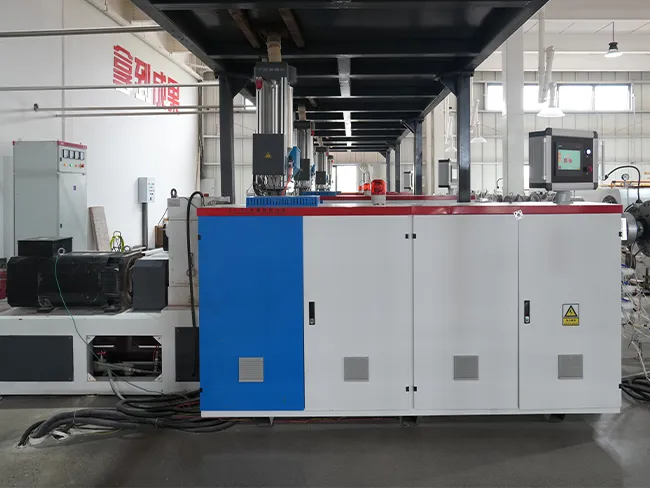

Extruder

Through electric heating and shear heat generated by screw rotation, the solid particles are melted and plasticized into a uniform viscous fluid, which is continuously extruded by the thrust of the screw.

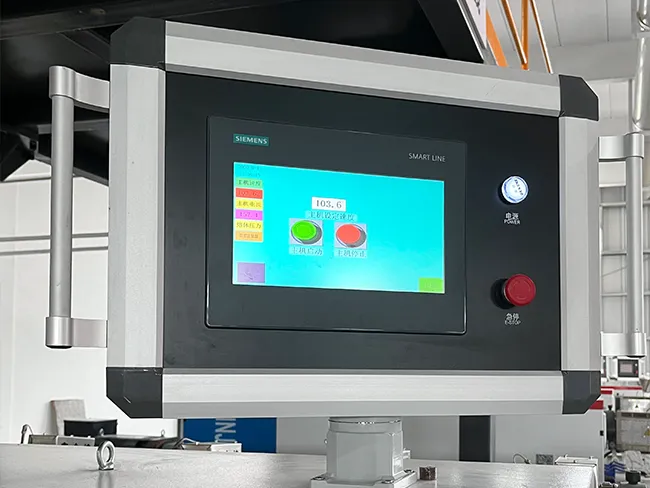

PLC Control System

Integrated PLC (Programmable Logic Controller) and touch screen human-machine interface for centralized control of all equipment operating parameters.

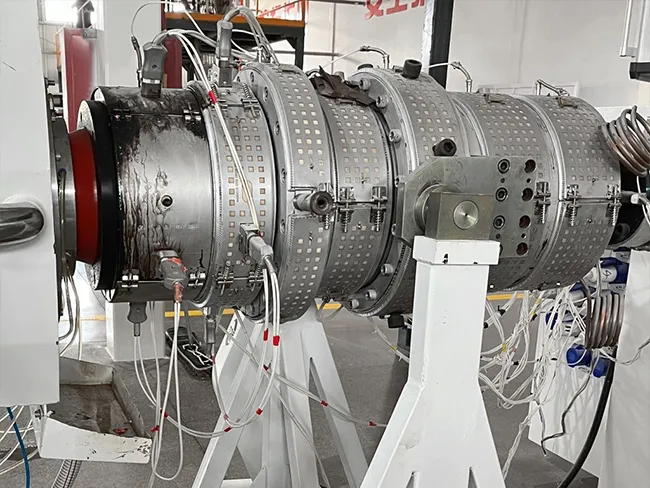

Extrusion Die Head

The molten material from the extruder is received and formed into a tubular parison with specific inner and outer diameter dimensions.

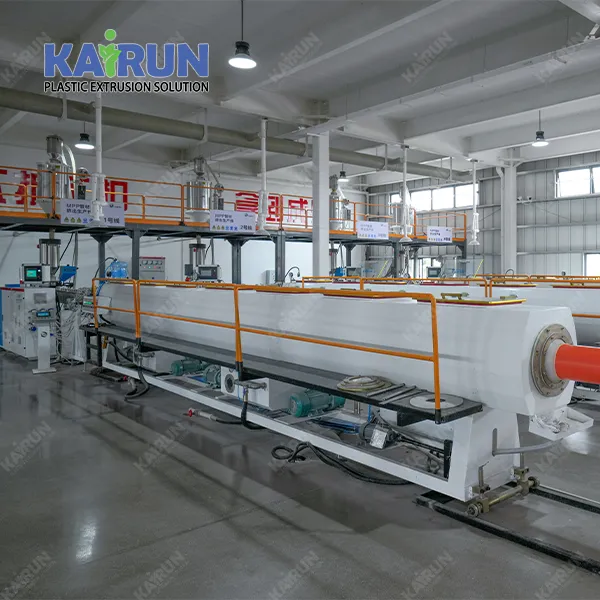

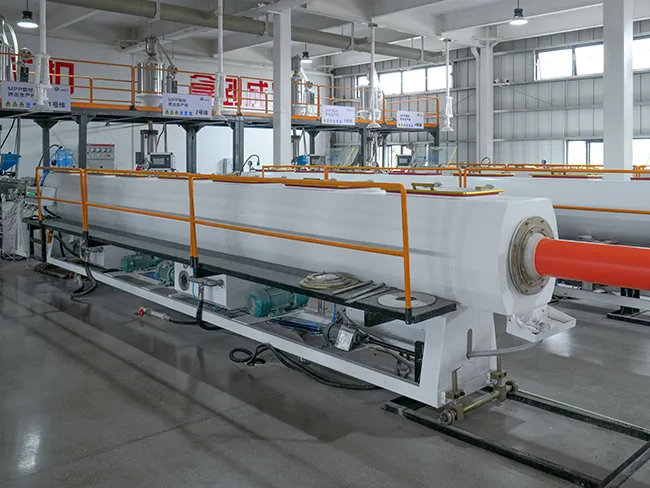

Vacuum Calibration Tank

Through vacuum adsorption and circulating water cooling, the outer diameter of the high-temperature softened tube just out of the mold is quickly shaped and initially cooled.

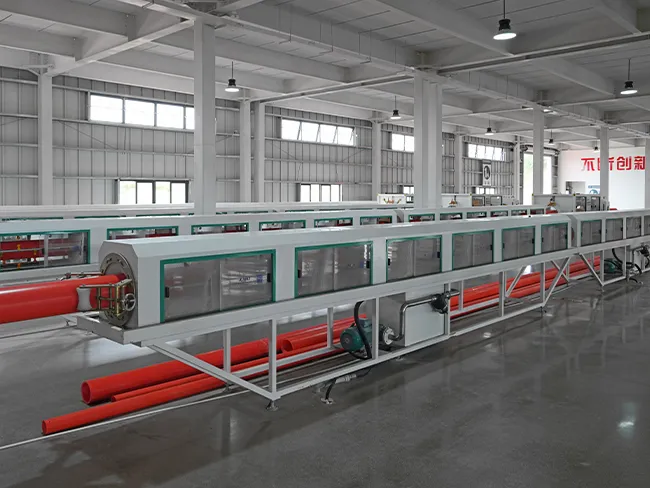

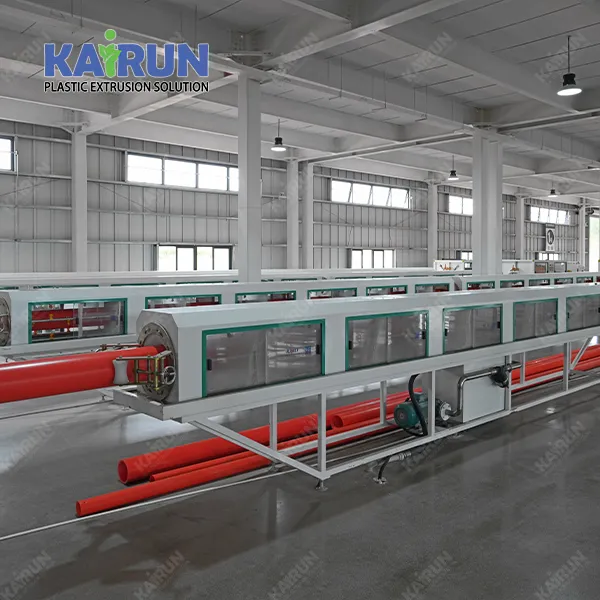

Spray Cooling Tank

The shaped pipe is fully and evenly cooled to fully solidify. Evenly spraying water can prevent stress deformation caused by uneven cooling.

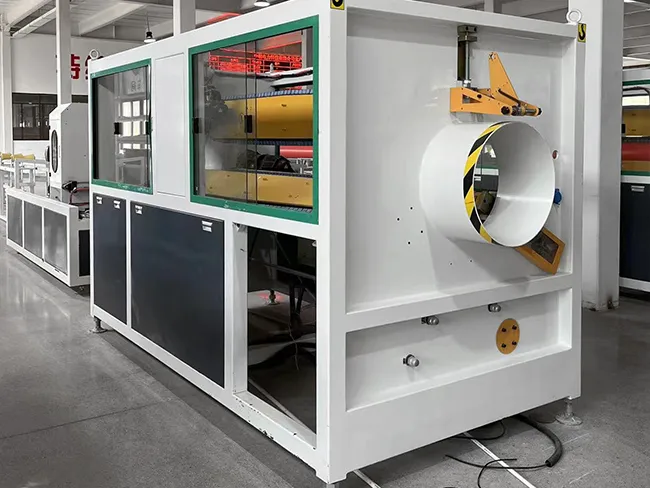

Haul-Off

Provides smooth, constant, and adjustable traction to evenly pull the shaped pipe from the mold, ensuring dimensional stability of the pipe.

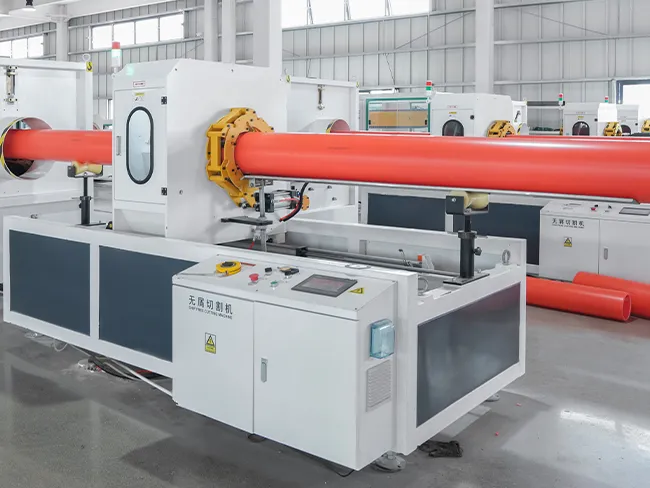

Cutter

The cutting machine automatically cuts the continuously moving pipe to a fixed length according to the set length.

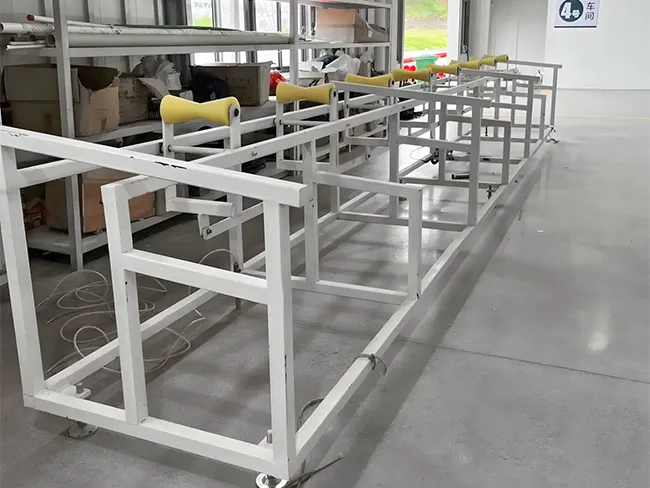

Stacker

Automatically receive and stack cut pipes, reducing manual labor and avoiding scratches on the pipe surface.

MPP Electrical Pipe Production Line Video:

MPP Electrical Pipe Applications:

MPP wire protection pipes can be widely used in municipal, telecommunications, electricity, gas, tap water, heat and other pipeline projects, as well as urban and rural trenchless horizontal directional drilling power pipe projects, open excavation power pipe projects, urban and rural trenchless horizontal directional drilling sewage pipe projects, industrial wastewater discharge projects, etc.

MPP Electrical Wire Protection Pipe Extrusion Machine Parameter:
