LLDPE LDPE Film Bag Recycle Washing Machine

 LLDPE LDPE Film Bag Recycle Washing machine Description

KAIRUN Recyclable Plastics Include

• ● LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
• ● PP/OPP/BOPP/CPP film, woven bag,non-woven fabric (melt blown)
• ● PA66 fishing net, silk, factory trim, carpet
• ● PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
• ● PTT wire
• ● EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
• ● HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
• ● PVB crushed material, flakes
• ● PU

 LLDPE LDPE Film Bag Recycle Washing machine Working Flow:

Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet

 LLDPE LDPE Film Bag Recycle Line Technical Parameter

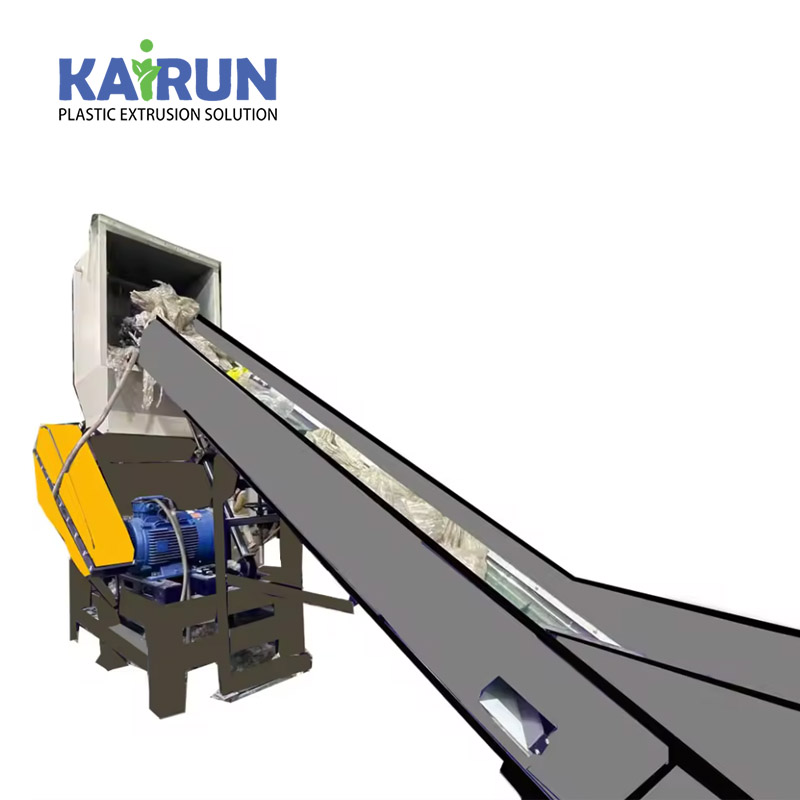

Belt ConveyorFeeding conveyor to the shredder:

● With Load related controlling device for conveyor belt for avoiding of the overfeeding of the
shredder;
● Equipped with pull switch surround the conveyor. Metal detector as optional, for detection of metallic contaminants
for protecting of the shredder.

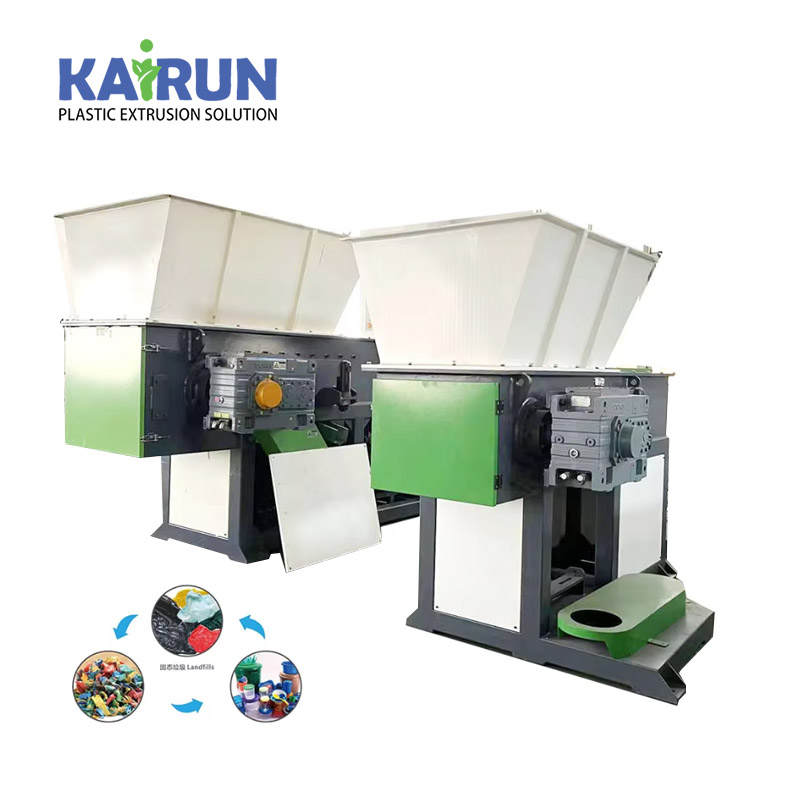

Shredder

● For reduce plastic material size.
● 35% more space inside the cutting chamber built-in hydraulic ram;
● Variable faster ram movement;
● Less space occupied than traditional shredders with horizontal rams;
● Enclosed cutting chamber to prevent.

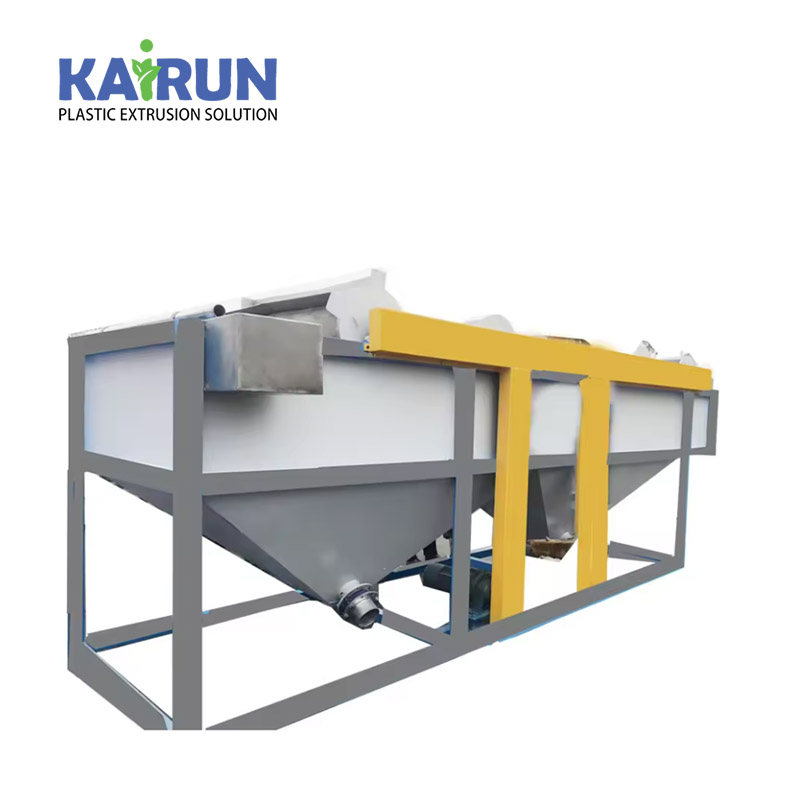

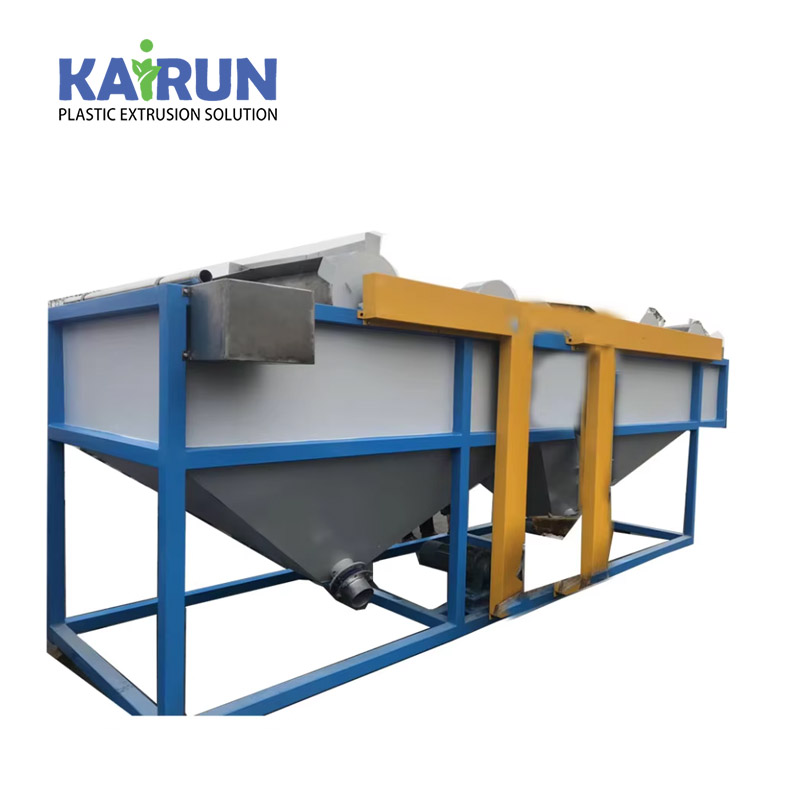

Floating washer
Dimension(L*W): 6000*1800mm
Made of SUS304 stainless steel

Screw friction washer
Motor power: 22kw
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Made of SUS304 stainless steel

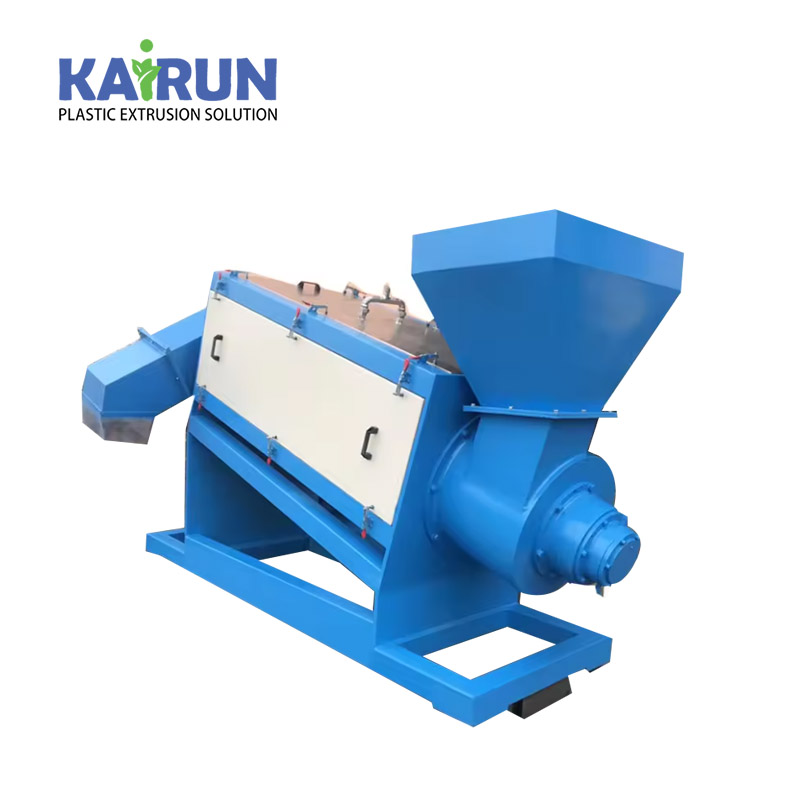

Dewatering Machine

● Easy maintenance;
● High effective drying and cleaning;
● Reinforced, mild steel and high-speed rotor with exchangeable padels;
● Stainless steel screen hole size 2-3mm in polygon version for higher washing /drying effect;
● Easy replacement of screens(segmental design);
● Housing built in mild steel, welded construction; ‘
● Oversized, outside mounted bearings.
