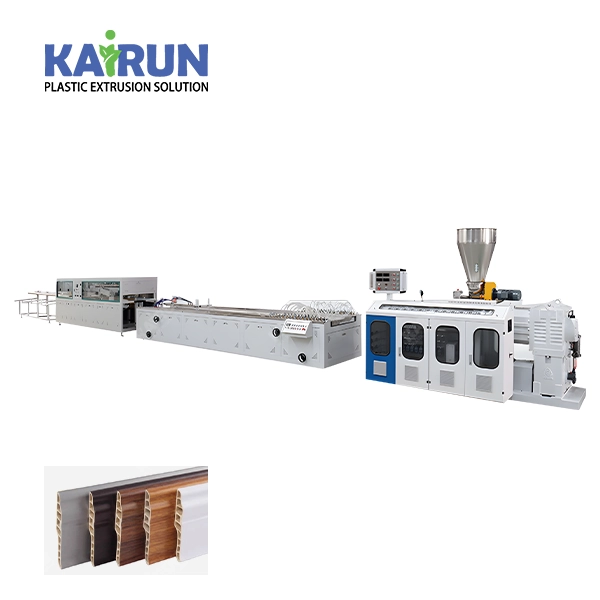

PVC Skirting Extrusion Line Introduction

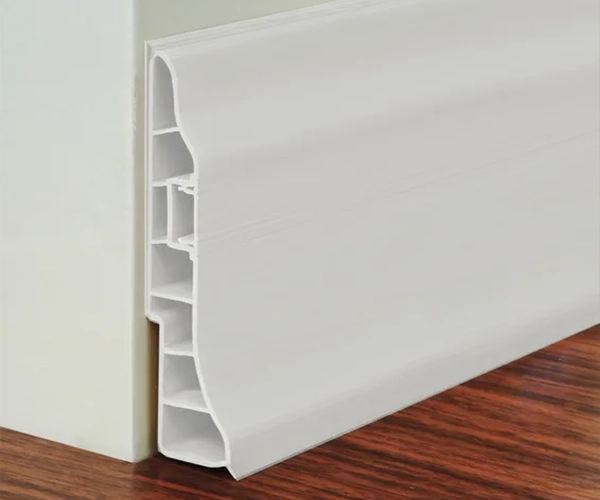

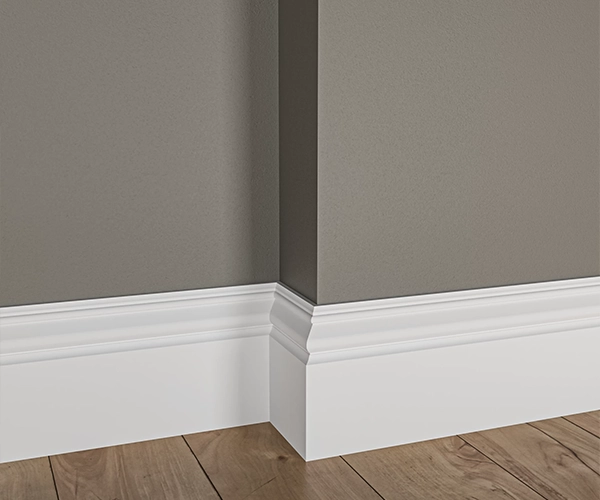

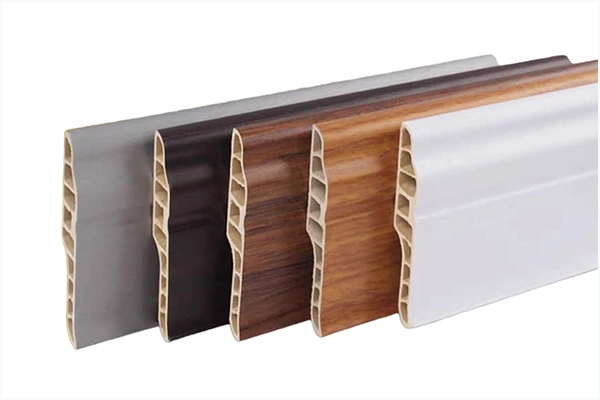

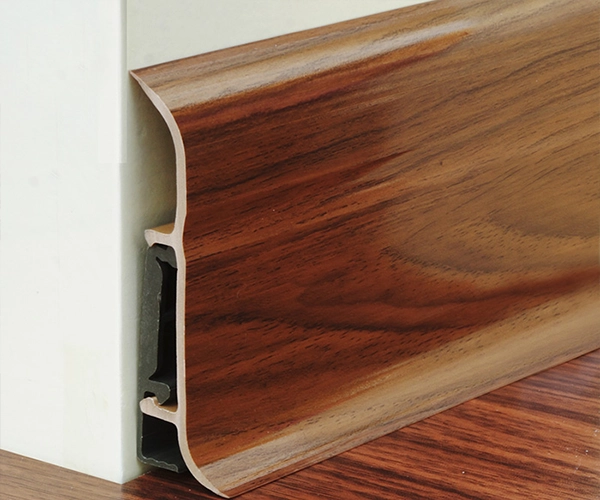

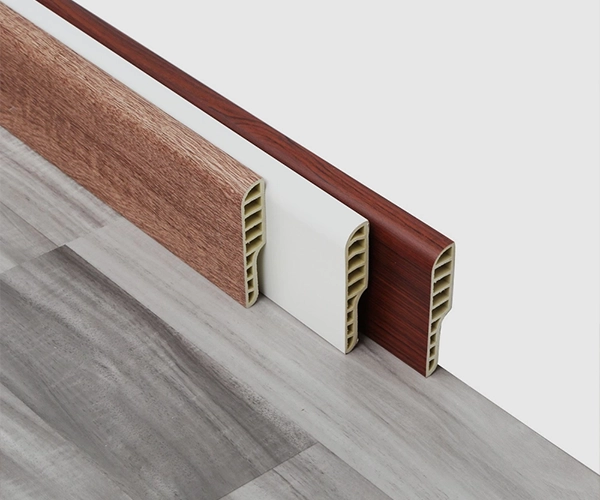

PVC skirting extrusion line is a fully integrated, automated manufacturing system designed to produce PVC skirting boards (also called baseboards or coving) from raw PVC compound to finished, packaged product. The PVC skirting production line combines several machines in a sequential process to ensure high efficiency, consistent quality, and minimal manual intervention.

Advantages of PVC Skirting Production Line:

1. High Efficiency: Continuous, automated operation from raw material to finished product.

2. Consistent Quality: Precise control over temperature, speed, and pulling force ensures every piece is identical.

3. Low Labor Cost: The entire process can be managed by 1-3 operators.

4. Material Versatility: Can be adapted to produce different profiles by simply changing the die and adjusting the recipe.

5. Scalability: Output can be scaled by choosing an extruder with a higher capacity.

PVC Skirting Production Line Parameter:

Model	SJ51	SJ 55	SJ 65
Diameter of screw	51/105	55/110	65/132
Speed (KG/H)	120	180	250
Weight (KG)	3500	4000	5000

Components of PVC Skirting Production Line:

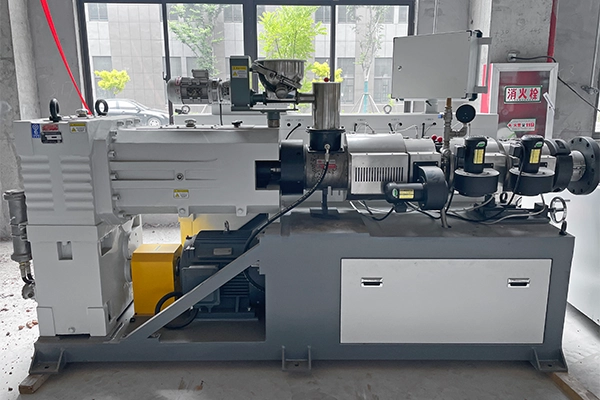

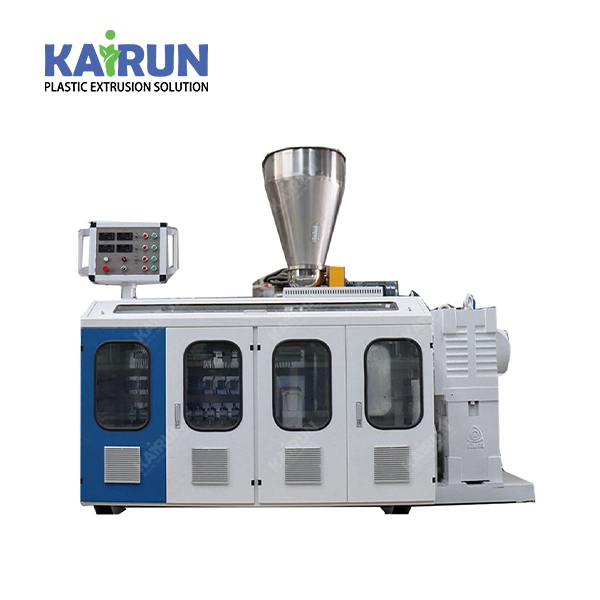

Extruder

The dry mix is further heated, compacted, and plasticized into a uniform melt, and is pushed through the die by the force of the screw to form the desired preliminary shape.

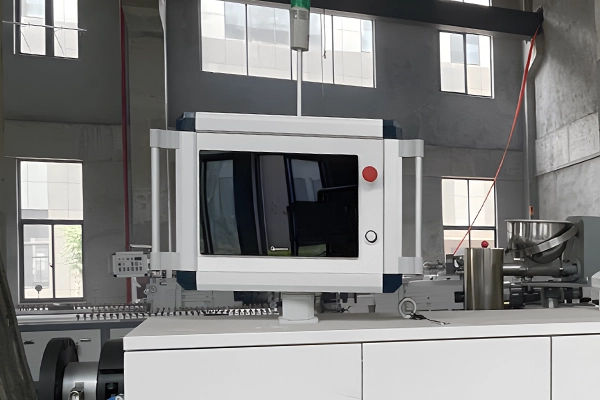

PLC Control System

Integrated PLC (Programmable Logic Controller) and touch screen human-machine interface for centralized control of all equipment operating parameters.

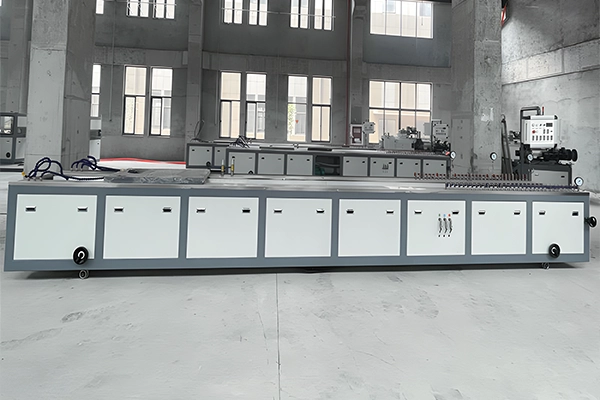

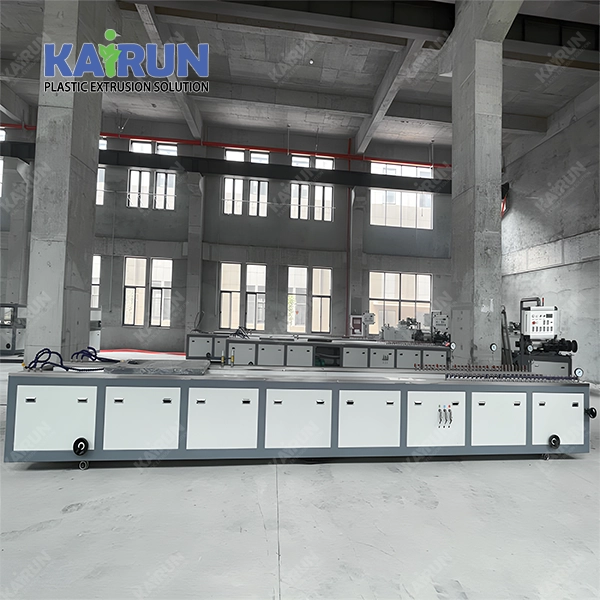

Vacuum Calibration Table

The hot, soft profile coming out of the mold is immediately cooled and solidified to ensure that the profile is completely cooled to room temperature and its final size and shape are controlled.

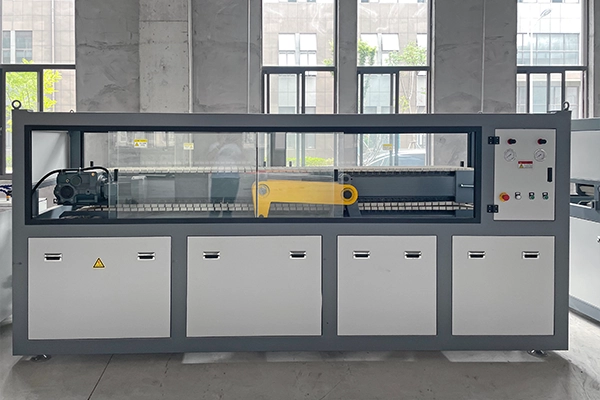

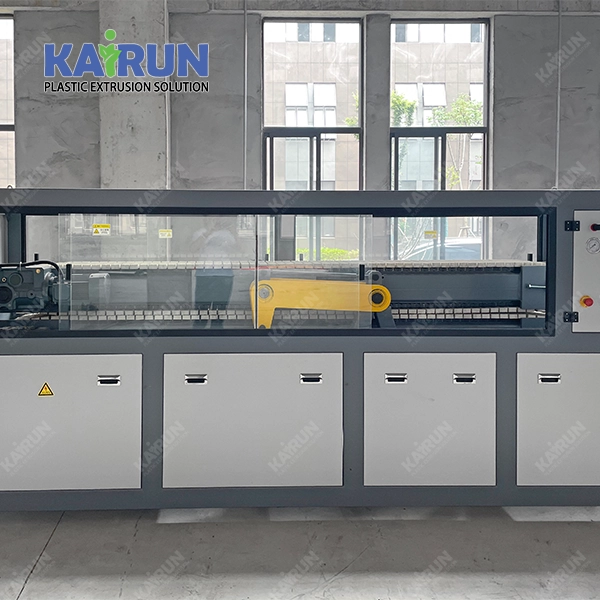

Haul-Off

Provides stable, continuous and adjustable traction force to evenly pull the profile forward, ensuring the continuity of production and the stability of profile size.
