PVC Ceiling Panel Board Extrusion Line PVC Ceiling Panel Making Machine for Decoration
1.Screw Loader for for PE WPC Wall Panel Production

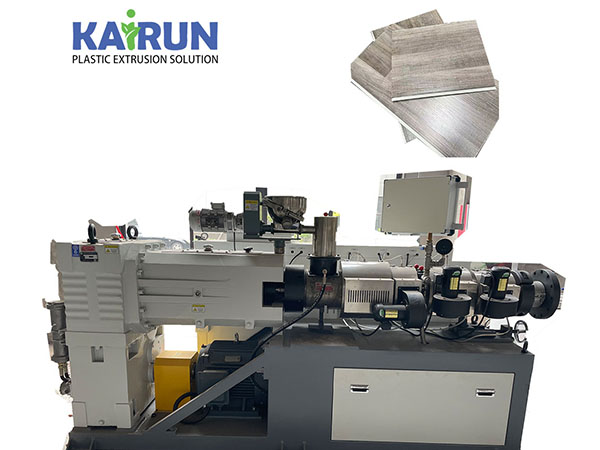

2.SJSZ65/132 Conical Double Screw Extruder

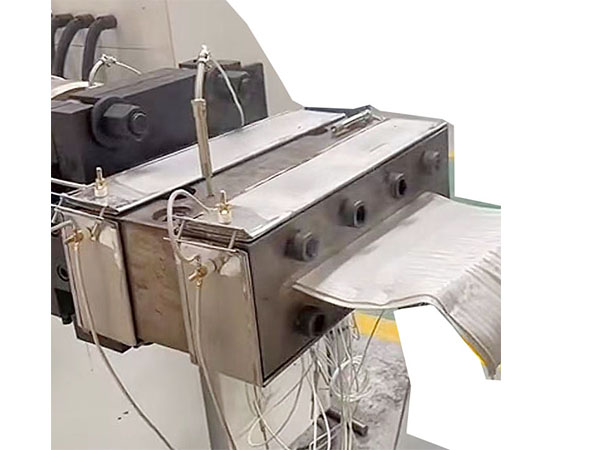

3.Extrusion Mould for PE WPC Wall Panel Production
4.Calibration Cooling Table for PE WPC Wall Panel Production
5.Cutting Machine for PE WPC Wall Panel Production
6.Stacker for for PE WPC Wall Panel Production
PVC Ceiling Panel Board Extrusion Line PVC Ceiling Panel Making Machine for Decoration
Our PVC Ceiling Panel Extrusion Line is mainly used in the area of PVC ceiling, integrated ceiling, luggage board, ceiling corner and etc.

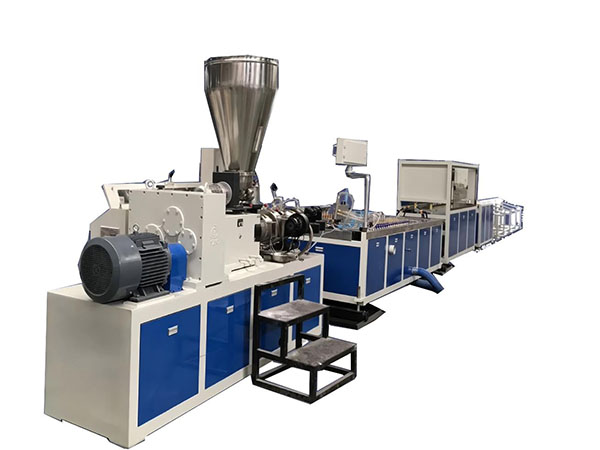

Thge equipmemt consists of conical twin-screw extruder, vacuum shaping table, tractor, cutter and stacker.
It has high-techlaser tracking device exclusive, yo ensure not only extrude PVC ceilings with high quality and output also greatly reduce the cost of production, which get appreciations from customers.
|
Model
|
SJSZ48(50)
|
SJSZ55
|
SJSZ65
|
|
Main power(kw)
|
15
|
22
|
37
|
|
Product width(mm)
|
300
|
200-600
|
300-600
|
|
Total power(kw)
|
34
|
47
|
66
|
|
Output capacity(kg/h)
|
110-160
|
120-190
|
150-210
|
|
Length of the line
|
18.5
|
20
|
21.5
|
|
Air compression(mpa/m3)
|
0.5
|
0.6
|
0.6
|
