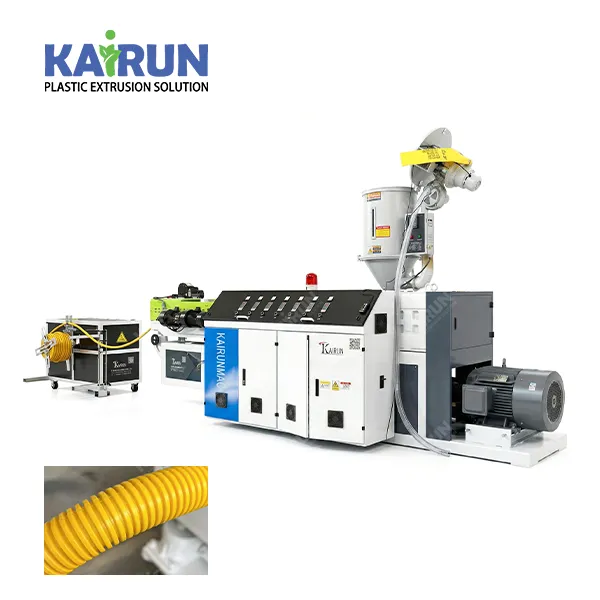

Single Wall Corrugated Pipe Making Machine

Plastic Single Wall Corrugated Pipe Making Machine

This plastic single wall corrugated pipe making machine can be used to produce corrugated pipes of PE, PP, EVA, PVC, EVA continuously, as well as PA corrugated pipes.
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility, etc.
They are widely used in fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lantern wires, tubes of air conditioner and washing machine, etc.

Single Wall Corrugated Pipe Extrusion Line Parameter:

Components of Corrugated Pipe Extrusion Line:

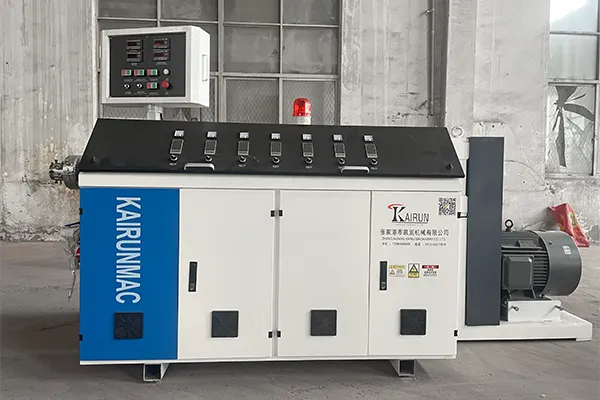

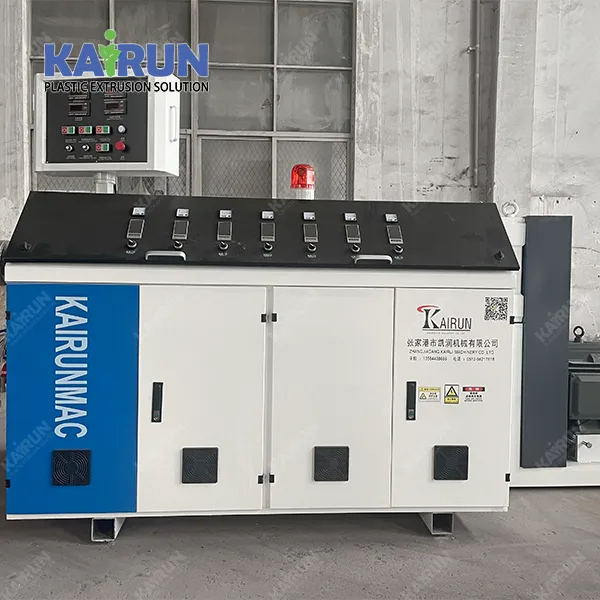

Extruder

High efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion.

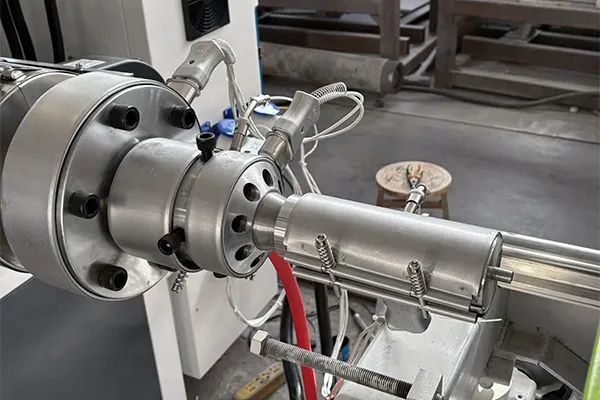

Extrusion Die Head

The die head with innovative materials provide efficient insulation while reducing power consumption 30%.

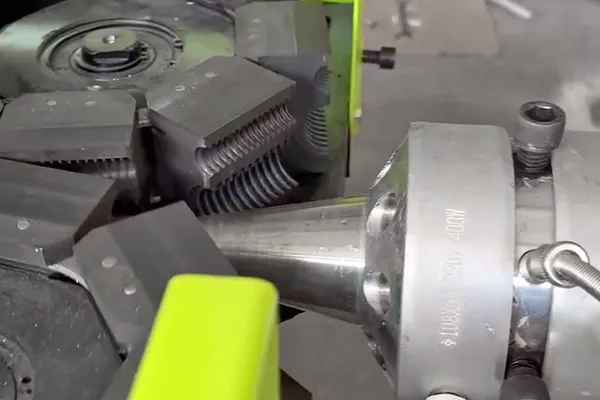

Corrugation Forming Machine

Closed structure, module link in the overall closure base does round-trip running in the running tunnels.

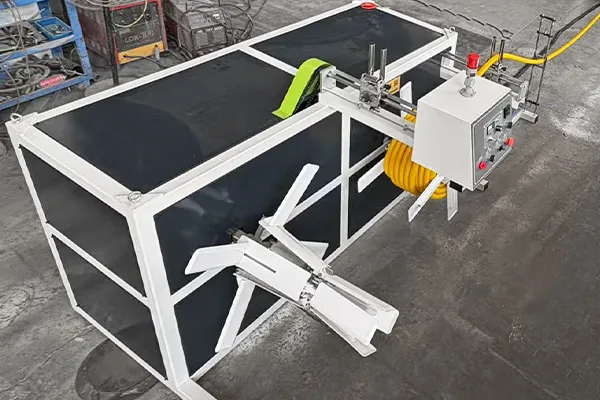

Double Station Winding Machine

Can balance the speed between pipe producing and rewinding. The device will stop rewinding when the pipe production is slow to prevent the pipe from getting too tight or disconnected.

Features of Single Wall Corrugated Pipe Extruder:

1. Plastic single wall corrugated pipe extrusion equipment has high flexibility and adaptability. Different extruders can be selected according to different materials to ensure product quality and production efficiency.

2. The corrugated pipe production machinery adopts modular optimization design. Users can adjust the number of modules according to needs to achieve economical and efficient operation.

3. The corrugated pipe extrusion production line is continuously produced at a high speed. The template string water cooling and air cooling methods accelerate the cooling speed.

4. By replacing the mold, a variety of plastic corrugated pipes can be produced, realizing one machine for multiple uses.

Corrugated Pipe Making Machine Video:

 Single Wall Corrugated Pipe Applications:

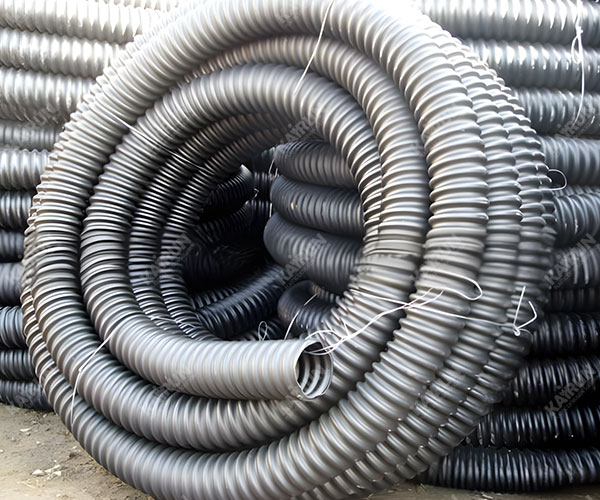

Agricultural Irrigation Pipes

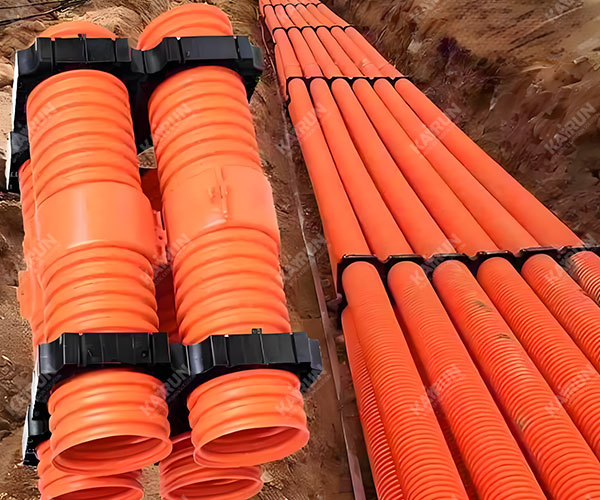

Electrical Wire Threading Pipes

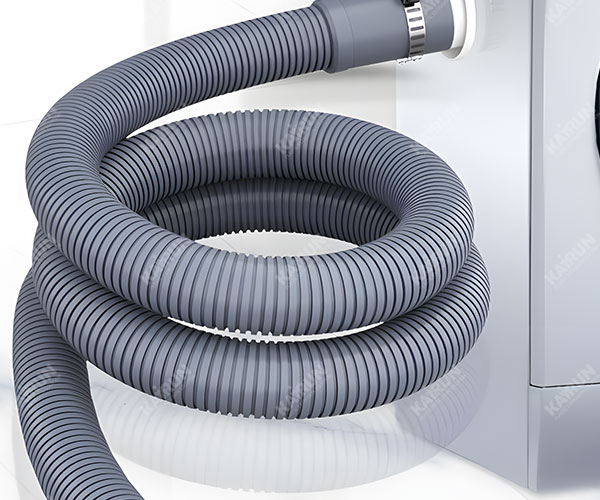

Air Conditioner / Washing Machine Pipe

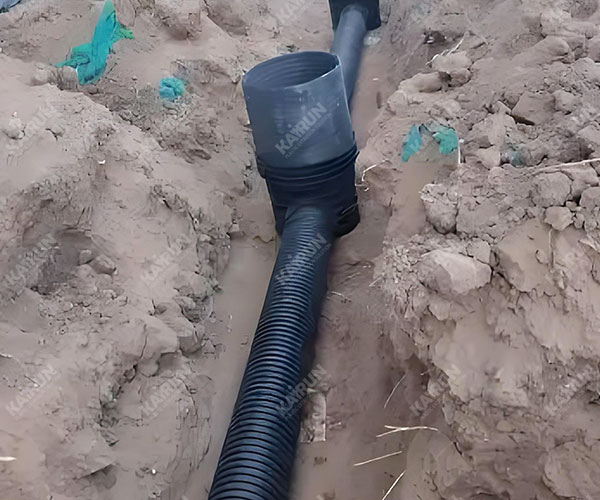

Sewage Pipes
