Plastic Pipe Punching Machine

Plastic Pipe Punching Machine Introduction

The plastic pipe punching machine is an automated or semi-automated device designed for precisely drilling holes in plastic pipes such as PVC, PPR, and PE. The plastic pipe punching machine operates using a high-speed rotating drill or laser cutting technology. Pre-programmed control of drilling position, diameter, and depth ensures smooth, burr-free hole edges. High-end models are equipped with servo motors and CNC systems, achieving accuracy of ±0.1mm and are suitable for batch processing in plumbing, HVAC, and chemical piping.

Technical Advantages and Performance:

High Efficiency: A single machine can complete 200-500 holes per hour (depending on hole diameter and pipe hardness), representing over 10 times the efficiency of traditional manual operations.

Adaptability: By replacing fixtures and cutting tools, it can handle pipe diameters ranging from 20mm to 1200mm, and supports round, square, and special-shaped holes.

Environmental Performance: An integrated debris collection device prevents micro plastic splashing.

Direction for use

PLC control
Put the pipe on the rack
Align the drilling position

Description of application effect

Neat
Round
High quality

Industry Application:

In municipal engineering, this equipment is used to drill holes for fire protection pipeline branches; in agriculture, it’s used to evenly distribute holes in drip irrigation systems; and in the automotive industry, it can be used to create ventilation holes for fuel lines. Typical cases show that using CNC punching machines can shorten piping system installation time by 30% and reduce the risk of leaks caused by manual errors.

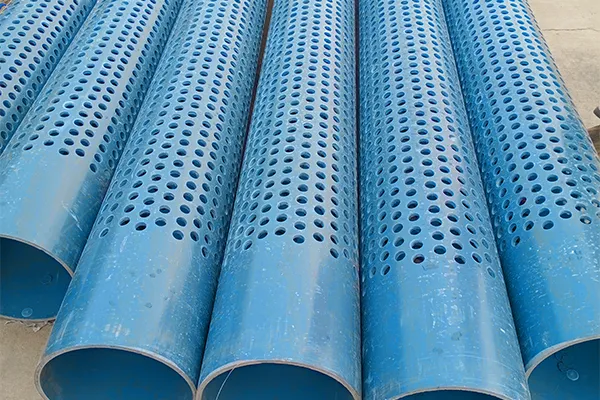

PVC Pipe Punching

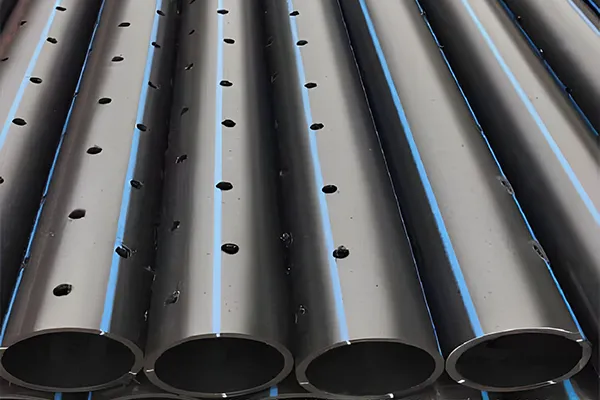

PE Pipe Punching

PPR Pipe Punching

PVC Pipe Punching

Plastic Pipe Punching Machine video:

PE Pipe Punching Machine Video

FAQ
