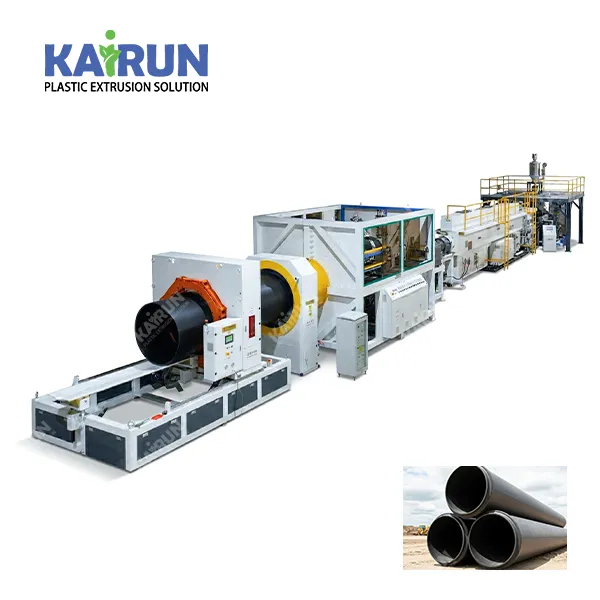

630-1200mm HDPE Pipe Production Line

630-1200mm HDPE Pipe Production Line Introduction

The HDPE pipe production line is specialized for producing large-diameter HDPE pipes with nominal diameters ranging from 630mm to 1200mm. HDPE pipes are used in municipal water supply, drainage, gas pipeline networks, and other engineering fields.

HDPE Pipe Production Line Features:

1. The HDPE pipe extrusion line utilizes a PLC (Programmable Logic Controller) and a touchscreen human-machine interface, enabling automated control of the entire process from batching, extrusion, shaping, drawing, and cutting. This significantly reduces reliance on manpower and operator skills, ensuring stable and consistent product quality.

2. Equipped with modern extruders featuring advanced design, strong plasticizing capacity, stable output, and high yields. Combined with efficient cooling and drawing systems, it enables continuous 24-hour production to meet the supply needs of large-scale projects.

3. The HDPE pipe production line integrates multiple online monitoring and feedback systems, enabling real-time monitoring of key pipe parameters such as outer diameter, wall thickness, and ovality, enabling timely and automatic adjustments to ensure that every meter of pipe meets high standards.

4. By replacing the mold and adjusting the production process parameters, the HDPE pipe extrusion line can produce pipes of different diameters and pressure levels within a certain range. This provides manufacturers with great flexibility to adapt to changing market demands.

Components of HDPE Pipe Extrusion Line:

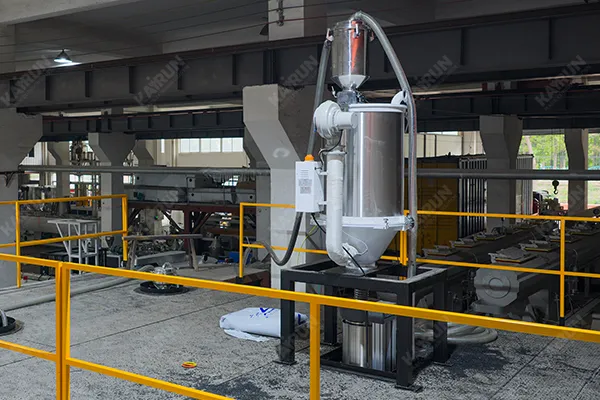

Hopper Dryer

Energy-saving dryer, energy saving rate over 30%. Stainless steel inner wall, easy to clean, stainless steel barrel has long service life.

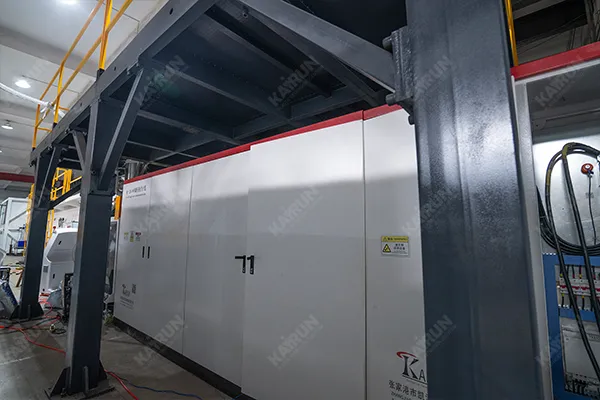

SJ-120/38 Extruder

Using single-screw extruder to heat, melt and stably extrude the HDPE raw material is the core factor that determines the pipe output and melt quality.

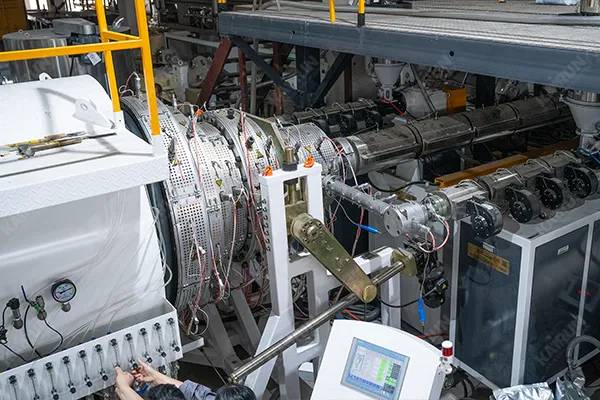

Extrusion Die Head

The molten material from the extruder is received and formed into a tubular parison with specific inner and outer diameter dimensions.

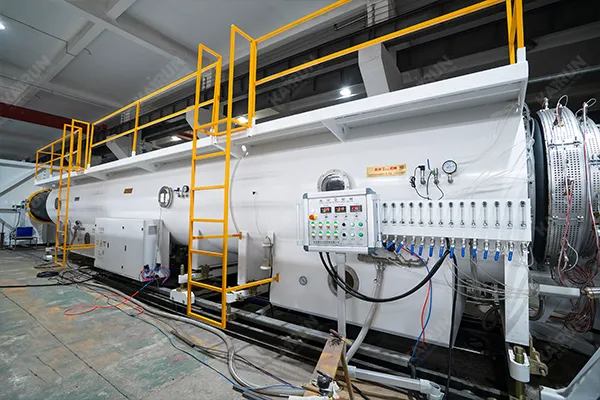

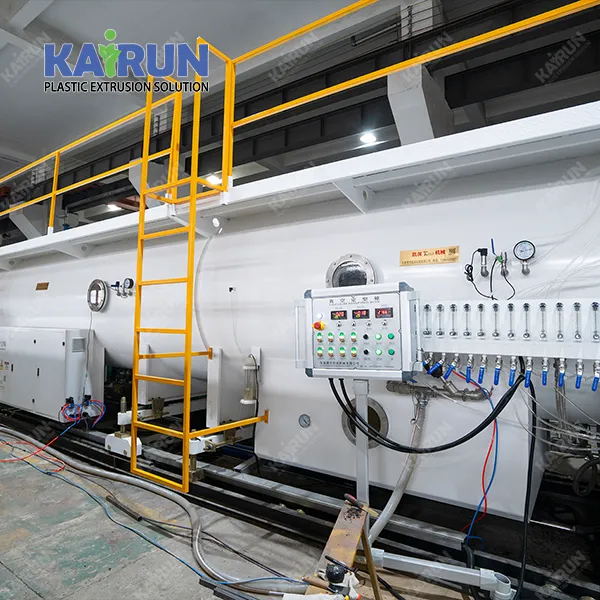

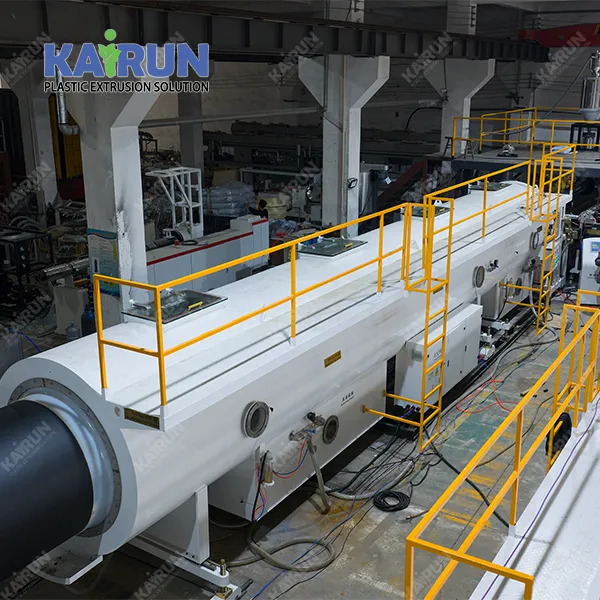

Vacuum Calibration Tank

Through vacuum adsorption and circulating water cooling, the outer diameter of the high-temperature softened tube just out of the mold is quickly shaped and initially cooled.

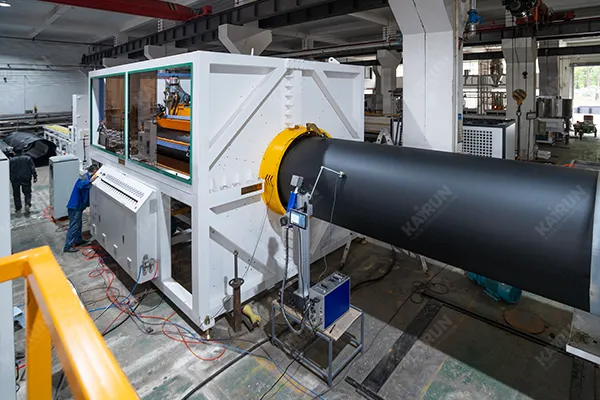

Haul-Off

Provides a stable, adjustable pulling force to evenly pull the cooled tube out of the die. The pulling speed must be precisely synchronized with the extrusion speed.

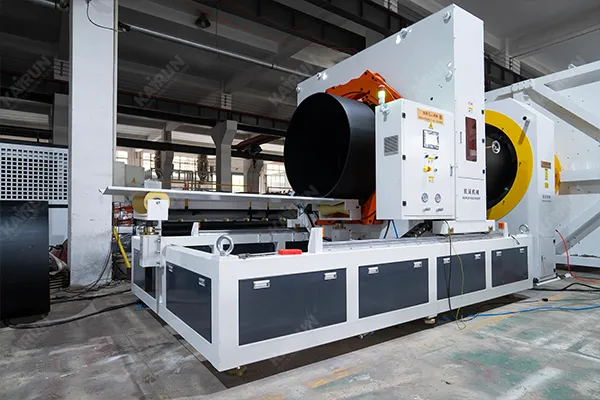

Cutter

The cutting machine automatically cuts the continuously moving pipe to a fixed length according to the set length.

HDPE Pipe Extrusion Line Video:

HDPE Pipe Production Line Parameter:

HDPE Pipes Applications:

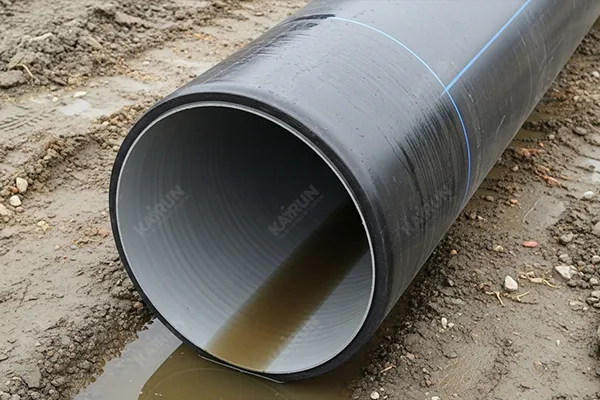

Drainage Transportation Pipes

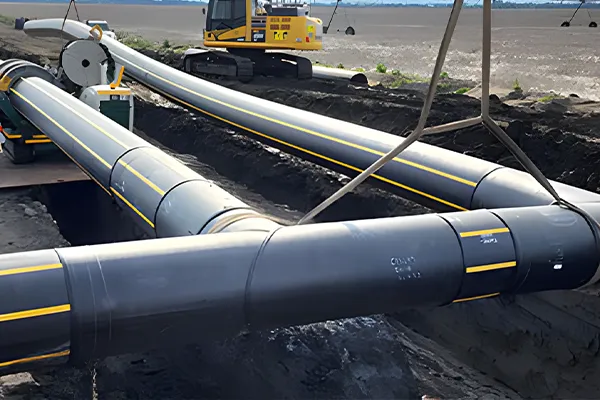

Petroleum Transportation Pipeline

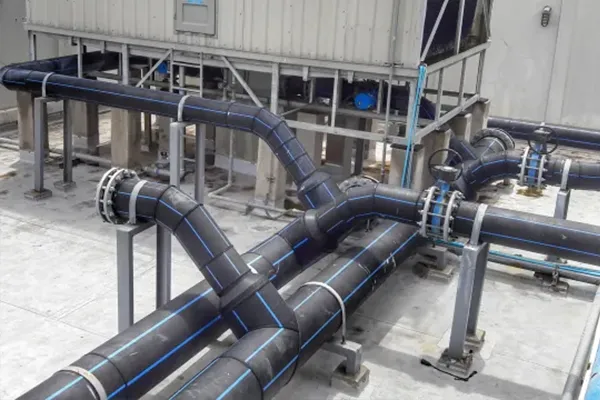

Chemical Industry Pipeline

Gas Transportation Pipes

FAQ
