Double Wall Plastic Corrugated Pipe Production Line

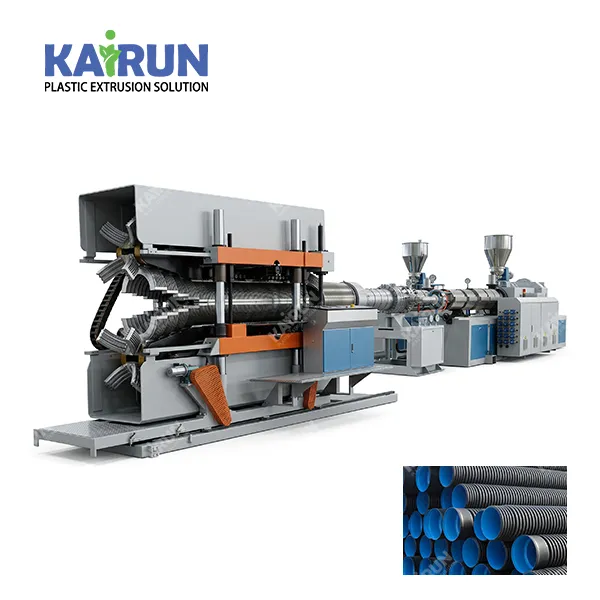

Double wall plastic corrugated pipe production line is a highly automated industrial equipment system specifically designed for the continuous production of double-wall plastic corrugated pipes.

Contact now

Previous: Plastic PVC Powder Pulverizer Making Recycling Machine

Next: 16-630mm Plastic PVC Pipe Making Machine

Double Wall Plastic Corrugated Pipe Production Line Introduction

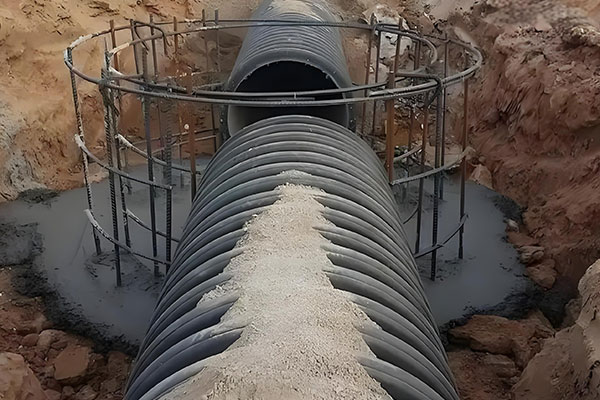

Double wall plastic corrugated pipe production line is a highly automated industrial equipment system specifically designed for the continuous production of double-wall plastic corrugated pipes. The double wall plastic corrugated pipe is a pipe with a special structure: its smooth inner wall minimizes fluid flow resistance, while its corrugated outer wall provides excellent ring stiffness and pressure resistance. This combination of rigidity and flexibility makes it an ideal product for replacing traditional concrete and cast iron pipes.

Corrugated Pipe Characteristics:

1. High Ring Stiffness: The corrugated pipe wall structure, similar to an I-beam, effectively and evenly distributes external loads (such as soil pressure and vehicle impact), resulting in extremely high compressive and impact resistance and resistance to crushing.

2. Good Flexibility: Despite its high ring stiffness, the corrugated structure allows the pipe to bend easily, making it easy to install in complex terrain or on winding paths without the need for numerous fittings.

3. Lightweight: Compared to concrete and metal pipes of comparable specifications and strength, plastic corrugated pipe is significantly lighter, making transportation, handling, and installation much easier and significantly reducing labor and machinery costs.

Corrugated Pipe Production Machine Parameter:

Model	Pipe Range (mm)	Corrugator Type	Output Capacity (kg/h)	Main Motor Power (kw)
KRPE160	63 – 160	Horizontal	400	55+45
KRPE250	75 – 250		400 – 520	(55+45) – (75+55)
KRPE400	200 – 400		740 – 1080	(110+75) – (160+110)
LPE600	200 – 600	Vertical / Shuttle	1080 – 1440	(160+110) – (200+160)
LPE800	200 – 800		1520 – 1850	(220+160) – (280+200)
LPE1200	400 – 1200		1850 – 2300	(280+200) – (355+28)
20	The way of lid sealing		Double channel high temperature resistant rubber seal

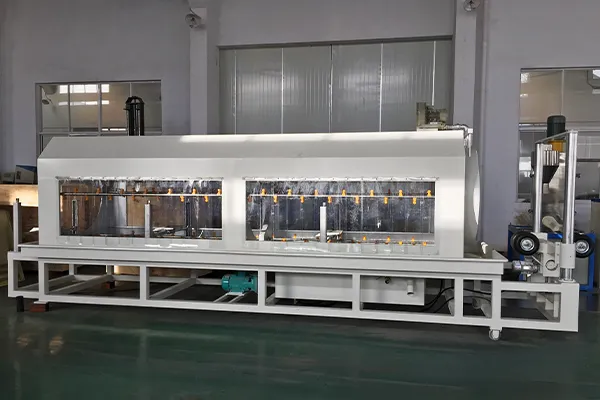

Components of HDPE Corrugated Pipe Extrusion Line:

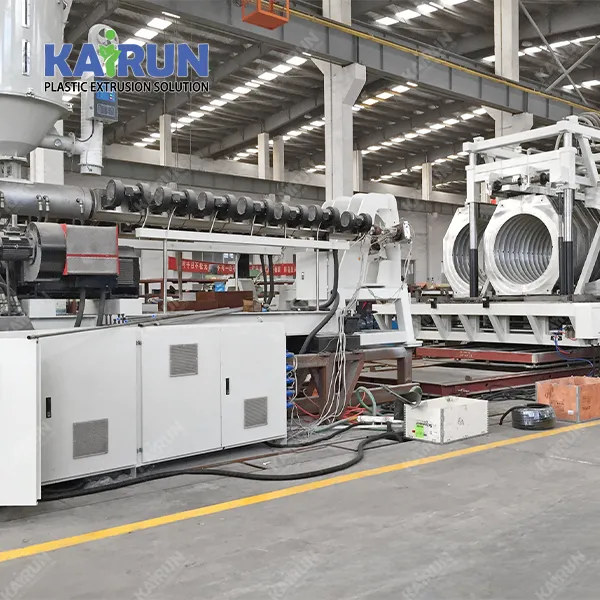

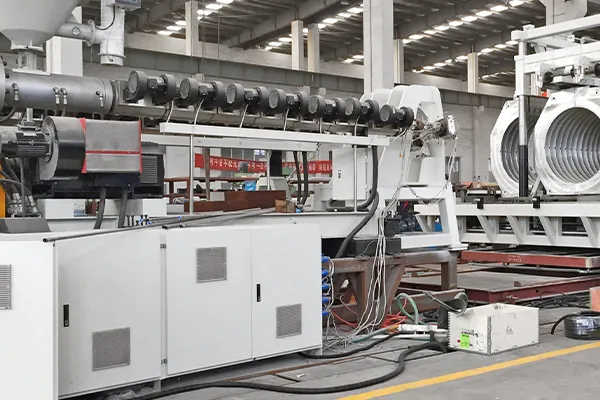

Single Screw Extruder

Through electric heating and shear heat generated by screw rotation, the solid PE particles are melted and plasticized into a uniform viscous fluid, which is continuously extruded by the thrust of the screw.

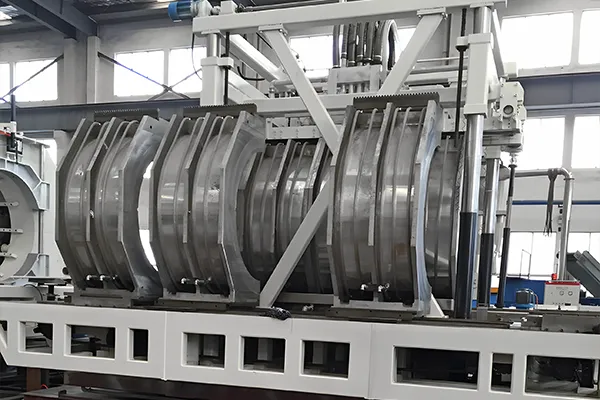

Die Head and Calibration Sleeve

Both outer layer and inner layer are extruded inside die head. Each material flow channel inside die head is placed evenly. Each channel is after heat treatment and mirror polishing to ensure material flow smoothly. Also die head provides compressed air between both layer.

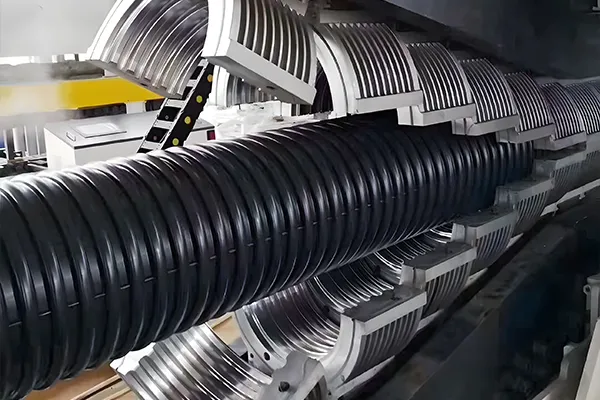

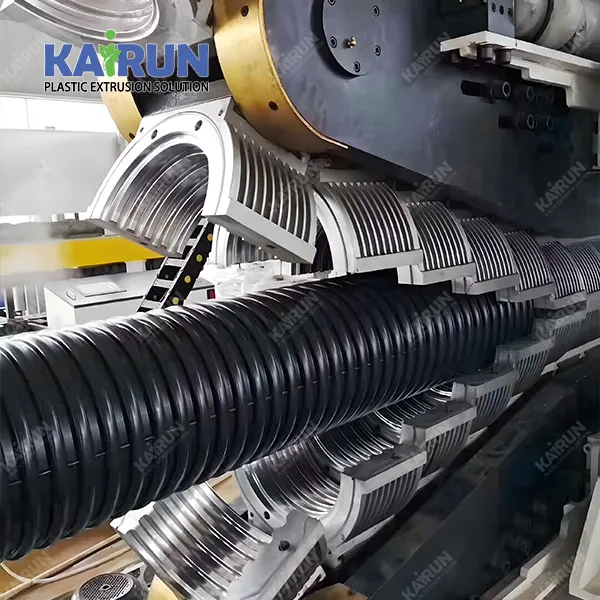

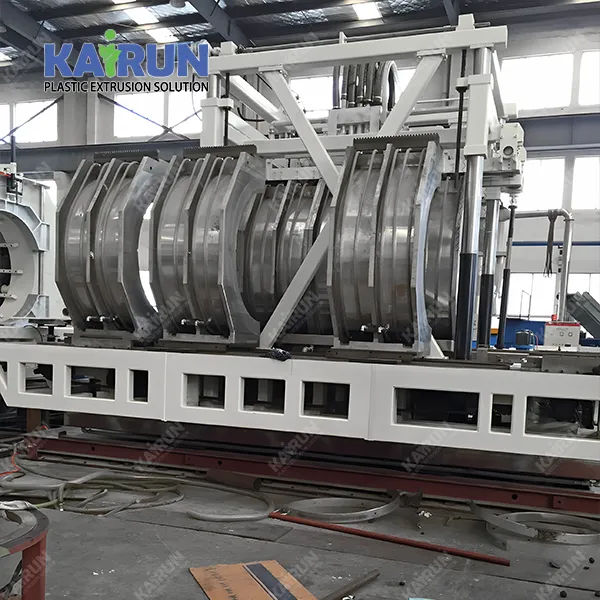

Corrugator / Forming Machine

Corrugator is used to place and move corrugated mould. Vacuum is created to absorb outer layer into corrugated mould to form corrugate shape. By moving corrugated mould, pipe is also pulled out from corrugator.
